2. Core Concepts

Goal: define every noun you'll meet in the EC2 console, so nothing later is a mystery. Each concept gets the same treatment — term → one-line analogy → precise technical definition — and where a concept has a trade-off, the trade-off is stated rather than implied.

Read this once end to end, then treat it as a lookup. The condensed version is the glossary.

---

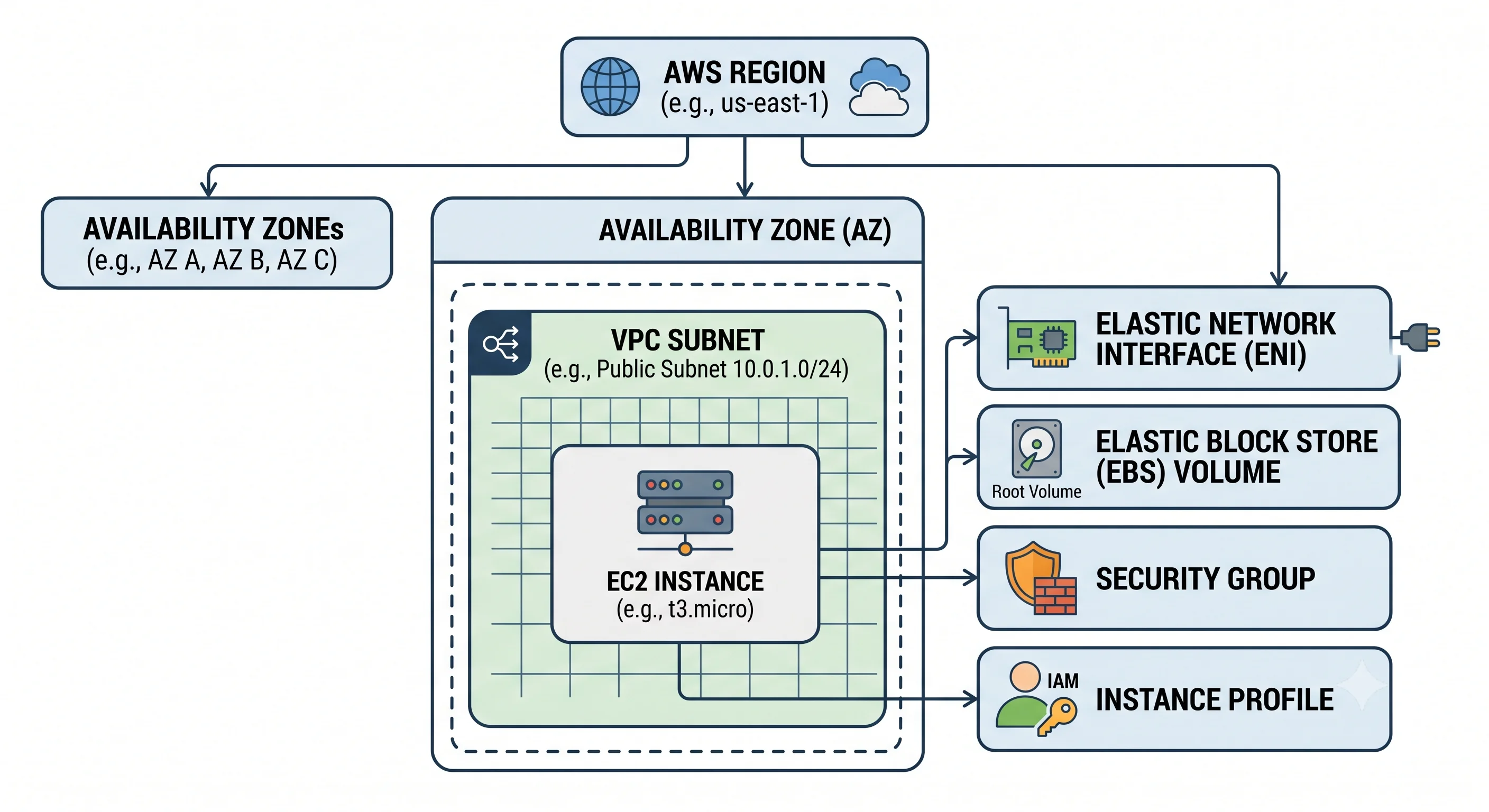

The resource hierarchy in one breath

An instance runs inside an Availability Zone, which lives in a Region. It is booted from an AMI, shaped by an instance type, placed on a subnet in a VPC through an ENI, firewalled by a security group, given permissions by an instance profile, and backed by one or more EBS volumes and possibly an instance store. A launch template is the recipe for all of that, and an Auto Scaling group is the thing that makes N copies of the recipe.

---

1. The top-level resource: the instance

Term	Analogy	Technical definition
Instance	A hotel room you've checked into	A running virtual machine on AWS-managed hardware, identified by an instance ID (i-0abc123…), existing in exactly one Availability Zone, billed while in the running state

An instance is not a durable resource. It has an ID, a lifecycle, and an end. Anything you want to survive it must live somewhere else — an EBS volume, S3, a database.

Instance lifecycle states

State	What's happening	Are you billed?
pending	AWS is placing and booting it	No
running	It's up	Yes — compute charges accrue
stopping → stopped	Shut down; EBS root volume preserved	No compute charge; you still pay for EBS storage
shutting-down → terminated	Being destroyed	No — and the record disappears after a while
hibernated	RAM contents written to the encrypted root EBS volume, then stopped	No compute; you pay for the (now larger) EBS storage

Stop vs. terminate is the distinction that bites people. Stopping is reversible: the root EBS volume and its data persist, and starting again gives you the same instance ID and same private IP. Terminating is not: by default the root volume is deleted with it (DeleteOnTermination = true), and the instance ID is gone forever.

Two more consequences of stopping that surprise people:

• A stopped-then-started instance almost certainly lands on different physical hardware. Anything in the instance store is gone. This is also the standard fix for a degraded host.
• A non-Elastic public IPv4 address is released on stop and a new one assigned on start. If something is pointing at that IP, it breaks. Use an Elastic IP or a DNS name.

---

2. The image: AMI

Term	Analogy	Technical definition
AMI (Amazon Machine Image)	A disk image / the "golden master" a factory stamps copies from	A regional, immutable template containing a root volume snapshot, launch permissions, and a block device mapping, from which instances are booted

Key properties:

• Region-scoped. An AMI exists in one region; to use it elsewhere you copy it (which creates a new AMI ID). This is a routine source of "why did my Terraform break in eu-west-1" — hard-coded AMI IDs are not portable. Look them up by name/owner instead (see Deployment).
• Immutable. You don't patch an AMI; you build a new one. That's the whole point — it's what makes instances reproducible.
• Sources: AWS-provided (Amazon Linux, Ubuntu, Windows Server), Marketplace (may carry a per-hour software charge on top of the instance charge), community, or your own.
• Backed by: almost always an EBS snapshot. Instance-store-backed AMIs still exist but are a legacy path you can ignore.

The trade-off — baked vs. configured-at-boot. A "golden AMI" with everything pre-installed boots fast, launches deterministically, and is the right answer for auto-scaling under load. But every change needs an image rebuild pipeline (Packer, EC2 Image Builder). Configuring at boot instead — via user data or Ansible — is faster to iterate on and slower and less reliable to launch, because you've made boot depend on the network and on package repositories being up. Most mature setups do both: a thin base AMI with the OS hardened and the agents installed, plus application config at deploy time.

---

3. The shape: instance types and families

Term	Analogy	Technical definition
Instance type	The engine and chassis spec of a rental car	A named combination of vCPU count, memory, network bandwidth, and storage/accelerator characteristics, e.g. m6i.large

Read the name left to right: m6i.large = family m, generation 6, capability i, size large.

Families — these are ratios, not quality tiers:

Prefix	Optimised for	Typical use
t	Burstable, cheap baseline	Dev boxes, low-traffic sites
m	General purpose — balanced CPU:memory	App servers, the sensible default
c	Compute — more CPU per GB of RAM	Batch processing, encoding, game servers
r, x, z	Memory — more RAM per vCPU	Caches, in-memory DBs, big JVM heaps
i, d	Storage — large local NVMe/HDD	NoSQL, data warehouses, scratch space
g, p, inf, trn	Accelerated — GPUs and custom silicon	Training, inference, graphics
hpc	Tightly-coupled HPC networking	Simulation, CFD

Capability letters (they compose): i = Intel, a = AMD, g = AWS Graviton (ARM64), d = local NVMe attached, n = extra network bandwidth, e = extra storage or memory, flex = a cheaper variant that delivers full CPU only part of the time.

Graviton is the cheap win most teams skip. ARM-based *g instances typically cost meaningfully less per hour than the Intel/AMD equivalents at similar performance for many workloads. The catch is real but shrinking: your container images and any compiled dependencies must be built for ARM64. ⚠️ verify current price/performance deltas against AWS docs — the numbers move every generation.

Sizes scale roughly linearly — large → xlarge → 2xlarge doubles vCPU and memory (and usually price) each step. metal means no hypervisor: the whole physical machine.

Burstable instances and CPU credits

t-family instances don't give you a full vCPU continuously. They earn CPU credits per hour at a rate set by the size, spend a credit for each vCPU-minute at 100% utilisation, and throttle to a low baseline when the balance hits zero.

• Standard mode: when credits run out, performance drops — hard. This is the classic "our dev box got mysteriously slow after a week" incident.
• Unlimited mode: it keeps performing and you're charged for surplus credits. Better behaviour, unbounded cost. Know which mode you're in; the default varies by family. ⚠️ verify against current AWS docs

Burstable is excellent for spiky, mostly-idle workloads and actively dangerous for steady CPU load — it's the one family where "cheapest per hour" and "cheapest per unit of work" diverge most.

---

4. Storage: EBS vs. instance store

This is the single most important distinction in EC2, and the source of the most expensive mistakes.

Term	Analogy	Technical definition
EBS volume	A network drive you mount	A durable, replicated block device in a single AZ, attached to an instance over the network, existing independently of any instance
Instance store	The scratch disk physically inside the machine	Ephemeral block storage on NVMe/SSD physically attached to the host, included in the instance price, wiped whenever the instance stops or the host changes

	EBS	Instance store
Survives reboot	✅	✅
Survives stop/start	✅	❌ data gone
Survives terminate	Only if DeleteOnTermination = false	❌
Survives host failure	✅	❌
Billed	Separately, per GB-month provisioned	Included in the instance hourly price
Snapshot-able	✅ (incremental, to S3)	❌
Detach and re-attach elsewhere	✅ (same AZ)	❌
Latency	Network-attached — low, but not local	Lowest available — it's local hardware

Rule of thumb: anything you'd be sad to lose goes on EBS. Instance store is for caches, scratch space, temp files, shuffle data, and local replicas of something durable elsewhere.

EBS volume types — the choice is IOPS/throughput vs. cost:

Type	Media	Use for
gp3	SSD	The default. IOPS and throughput are provisioned independently of size — the reason it's usually cheaper than gp2 for the same performance
gp2	SSD	Legacy general purpose; performance scales with volume size, so people over-provisioned capacity to buy IOPS
io1/io2	SSD	High, guaranteed IOPS for demanding databases; io2 Block Express for the extreme end
st1	HDD	Throughput-optimised, sequential — logs, big-file processing
sc1	HDD	Cold, infrequently accessed, cheapest

Baseline figures (gp3's included IOPS and throughput, per-volume maximums, and the size ranges for each type) change over time — ⚠️ verify against current AWS docs before you put a number in a design doc.

Term	Analogy	Technical definition
Snapshot	A versioned backup of the drive	An incremental, point-in-time copy of an EBS volume stored in S3 (in AWS's own buckets, not yours), region-scoped and copyable across regions

Snapshots are incremental — only changed blocks are stored — but independently restorable; deleting an old snapshot doesn't invalidate newer ones. Restoring creates a new volume, and a freshly-restored volume may be slow on first read of each block until it's fully hydrated from S3.

---

5. Identity and scoping

Regions, Availability Zones, ARNs, and tags are platform-wide concepts covered in Regions & Availability and ARNs, Tagging & Quotas. What matters here is how EC2 sits inside them:

Term	EC2-specific detail
Instance ID	i-0abc123def456 — unique within a region
Instance ARN	arn:aws:ec2:us-east-1:123456789012:instance/i-0abc…
Zonal placement	An instance lives in exactly one AZ, determined by its subnet. So does its EBS volume — which is why a volume can't follow an instance to another AZ
Regional scoping	AMIs, snapshots, security groups, and key pairs are region-scoped. Hard-coded AMI IDs break the moment you expand

The one that bites EC2 specifically: because an instance's AZ comes from its subnet, "spread across AZs" concretely means "give the Auto Scaling group several subnets". There is no other knob.

---

6. Networking primitives

Term	Analogy	Technical definition
VPC	Your own private office building	A logically isolated virtual network you define, with your own IP range
Subnet	A floor of that building, in one AZ	A CIDR sub-range of the VPC bound to exactly one AZ; "public" or "private" depending on whether its route table has a route to an internet gateway
ENI (Elastic Network Interface)	The network card	A virtual NIC with a MAC address, one primary and optional secondary private IPs, and its own security groups. Attachable and detachable from instances
Security group	A bouncer with a guest list	A stateful, allow-only virtual firewall applied at the ENI. Default: deny all inbound, allow all outbound
Network ACL	The building's front-door rules	A stateless allow/deny filter at the subnet boundary. Rarely the right tool; mentioned so you know why your traffic might die even with a permissive SG

Stateful vs. stateless is the exam question. A security group that allows inbound port 443 automatically allows the response traffic back out — it tracks connections. A NACL doesn't; you must allow the ephemeral return ports explicitly. This is why NACL misconfigurations produce baffling one-directional failures.

Security groups can reference other security groups as a source, not just CIDRs. allow 5432 from sg-app is dramatically better than allow 5432 from 10.0.0.0/16 — it survives re-IPing and expresses intent.

IP addressing

Term	Analogy	Technical definition
Private IP	Your desk extension	An address from the subnet CIDR, assigned at launch, stable for the life of the instance
Public IP	A pay phone number you're loaned	An auto-assigned public IPv4 mapped via NAT, released on stop and not visible inside the OS
Elastic IP (EIP)	A phone number you own	A static public IPv4 allocated to your account and remappable between instances/ENIs

Cost note: AWS charges hourly for public IPv4 addresses — both in-use and idle Elastic IPs (the in-use charge began in 2024). At fleet scale this is a real line item, and it's the main financial argument for putting instances in private subnets behind a load balancer or NAT gateway, or moving to IPv6. ⚠️ verify current rates against AWS pricing

Placement groups

Type	Analogy	Use for
Cluster	Everyone in one room	Lowest network latency between instances — HPC, tightly-coupled compute. Concentrates failure risk in one place
Spread	Deliberately different buildings	Small numbers of critical instances kept on distinct hardware
Partition	Separate racks per group	Large distributed systems (HDFS, Cassandra) that are rack-aware

---

7. Access and permissions

Term	Analogy	Technical definition
Key pair	The physical room key	An SSH keypair; AWS stores the public half and injects it at first boot. The private key is shown once and never again
Instance profile	A staff badge the machine wears	A container for a single IAM role that lets code on the instance obtain temporary credentials — no access keys on disk
IMDS (Instance Metadata Service)	The badge reader on the wall	A link-local HTTP endpoint at 169.254.169.254 serving instance metadata and the instance profile's temporary credentials
User data	The move-in checklist	A script or cloud-init config passed at launch, executed by default only on first boot

IMDSv2 is not optional in practice. The original IMDSv1 answered any HTTP GET from the instance — which meant a server-side request forgery bug in your web app could be coerced into fetching your role's credentials. IMDSv2 requires a PUT to obtain a short-lived session token first and enforces a hop limit so containers/proxies can't trivially relay the request. Require IMDSv2 and set the hop limit to 1 unless something in your stack demonstrably needs otherwise.

Key pairs are a smell, not a requirement. Session Manager (Systems Manager) gives you shell access with IAM authorisation, full audit logging in CloudTrail, and no inbound port 22 at all. Production argues this properly; for now, know that "how do I SSH in" often has the answer "don't."

User data runs as root and is visible in the instance metadata — never put a secret in it. Pull secrets at boot from Secrets Manager or Parameter Store using the instance role.

---

8. Capacity and purchasing

This is where EC2's cost model lives, and it's the most commonly fumbled interview topic. Two independent axes: how you pay and what you're guaranteed.

Term	Analogy	Technical definition
On-Demand	Walk-in hotel rate	Pay per second (Linux, 60-second minimum; some OSes and Marketplace AMIs bill per hour — ⚠️ verify) with no commitment
Savings Plans	A committed spend contract	Commit to $/hour of compute usage for 1 or 3 years for a discount. Compute Savings Plans are flexible across instance family, region, and even Lambda/Fargate; EC2 Instance Savings Plans are cheaper but lock you to a family and region
Reserved Instance (RI)	A pre-booked room block	The older commitment model, tied to instance attributes. Standard RIs discount more; Convertible RIs allow exchange. Largely superseded by Savings Plans for new commitments
Spot Instance	Standby airline seat	Spare capacity at a steep discount, reclaimable by AWS with a short interruption notice (two minutes, as of writing)
Capacity Reservation	Holding the room, whether or not you sleep in it	Reserves capacity in a specific AZ so a launch won't fail with InsufficientInstanceCapacity. Billed like On-Demand whether used or not. Independent of any discount
Dedicated Instance	A private floor	Runs on hardware not shared with other AWS accounts
Dedicated Host	Owning the building	A physical server allocated to you, with visibility into sockets and cores — the answer to per-socket/per-core BYOL licensing

The two things people get wrong:

1. Savings Plans and RIs are billing constructs, not capacity guarantees. A Savings Plan does not reserve you a machine; if the AZ is out of c6i.4xlarge, your launch still fails. Only a Capacity Reservation (or a Zonal RI) reserves capacity.
2. Spot isn't "cheap On-Demand", it's a different reliability contract. It's outstanding for stateless, interruptible, horizontally-scalable work — CI runners, batch jobs, big-data workers, and fault-tolerant web tiers behind an ASG with mixed instance policies. It's wrong for anything with local state or a hard deadline that can't absorb a mid-run eviction. Design for the interruption notice: drain, checkpoint, exit.

---

9. Fleet primitives

Term	Analogy	Technical definition
Launch template	The recipe card	A versioned, immutable-per-version definition of everything needed to launch an instance: AMI, type, key pair, SGs, user data, IAM profile, block devices, IMDS settings
Auto Scaling group (ASG)	The kitchen that keeps N dishes on the pass	A controller that launches/terminates instances to maintain a desired count across chosen subnets, replaces unhealthy ones, and adjusts capacity on policy
Target group	The list of open service windows	The set of registered targets a load balancer routes to, with its own health check
Health check	The manager checking each dish	Either EC2-level (is the instance status OK?) or ELB-level (does the app answer on /health?). ELB health checks are what you want — an instance can be perfectly healthy while your process is dead

Launch templates supersede launch configurations. Launch configurations are the older, unversioned form; AWS has been phasing them out and they don't support newer features. Use launch templates. ⚠️ verify the current deprecation status against AWS docs

Desired / minimum / maximum capacity is the ASG's whole contract: desired is what it maintains now, min is the floor it won't scale below, max is the ceiling — and the ceiling is your blast-radius control against a runaway scaling policy.

---

The running mini-table

The one-line version of everything above, for scanning:

Term	Analogy	Technical definition
Instance	Hotel room you've checked into	A running VM in one AZ, billed by the second while running
AMI	Disk image / golden master	Immutable, region-scoped launch template backed by an EBS snapshot
Instance type	Engine and chassis spec	Named vCPU/memory/network/accelerator shape, e.g. m6i.large
Instance family	Vehicle category	A CPU:memory:IO ratio — t burstable, m general, c compute, r memory, i storage, g/p accelerated
EBS volume	Network drive	Durable, AZ-scoped, independently-lived block storage attached over the network
Instance store	Internal scratch disk	Ephemeral local NVMe; lost on stop, terminate, or host change
Snapshot	Versioned backup	Incremental point-in-time copy of an EBS volume, stored in S3, region-scoped
Region / AZ	City / building in it	Isolated geography / discrete data centre with independent power and networking
VPC / Subnet	Office building / floor	Your private network / an AZ-bound CIDR slice of it
ENI	Network card	Virtual NIC carrying private IPs, MAC, and security groups
Security group	Bouncer with a guest list	Stateful, allow-only firewall at the ENI
Network ACL	Front-door rules	Stateless allow/deny filter at the subnet boundary
Elastic IP	A number you own	Static public IPv4 remappable between instances
Key pair	Room key	SSH keypair; private half shown exactly once
Instance profile	Staff badge	Wrapper for an IAM role granting the instance temporary credentials
IMDS	Badge reader on the wall	Link-local 169.254.169.254 metadata and credential endpoint; require v2
User data	Move-in checklist	Launch-time script run once at first boot, as root, and world-readable to the instance
On-Demand	Walk-in rate	Per-second billing, no commitment
Savings Plan	Committed spend contract	1/3-year $/hour commitment for a discount; not a capacity guarantee
Spot	Standby seat	Deep discount on spare capacity, reclaimable on short notice
Capacity Reservation	Room held for you	Guarantees capacity in an AZ; billed whether used or not
Dedicated Host	Owning the building	Physical server with socket/core visibility, for BYOL licensing
Placement group	Seating plan	Cluster (low latency), spread (distinct hardware), partition (rack-aware)
Launch template	Recipe card	Versioned definition of everything needed to launch an instance
Auto Scaling group	Kitchen keeping N on the pass	Maintains desired capacity, replaces unhealthy instances, scales on policy

---

Check yourself

• Which of these survive a stop/start: instance store data, the private IP, an auto-assigned public IP, EBS root volume data?
• Why is allow 5432 from sg-app better than allow 5432 from 10.0.0.0/16?
• Your c6i.2xlarge launch fails with InsufficientInstanceCapacity, but you hold a Compute Savings Plan. Why didn't the Savings Plan help, and what would have?
• A dev box on a t3.medium runs fine for six days then crawls. What happened, and what are your two options?
• Give one workload that's ideal for Spot and one that's actively unsafe on it.

---

Next: Architecture opens the box — the Nitro system, what actually happens between RunInstances and a login prompt, why EBS being network-attached matters, and how instances fail.
