4. Getting Started

8 min read

Goal: one running instance you can log into, built three ways, then deleted. Nothing here is production-shaped — that's the job of Deployment. This page is deliberately throwaway: hard-coded names, the default VPC, no variables, no remote state, no pipeline.

The task, identical in all three paths: launch a single Amazon Linux 2023 t3.micro in the default VPC, connect to it, confirm it's alive, and destroy everything.

Before you start. This costs money — small, but not zero. Free-tier terms have changed and vary by account age and region, so don't assume this is free. ⚠️ verify current free-tier terms against AWS docs. Whatever you do, complete the teardown.

Prerequisites: an AWS account, the AWS CLI v2 installed and configured (aws configure), and for the third path, Terraform. Everything below uses us-east-1 — substitute your region consistently.

Path 1 — Console (fast to grasp, impossible to repeat)

EC2 → Instances → Launch instances. Name it demo-instance.
AMI: pick Amazon Linux 2023 from Quick Start. Instance type: t3.micro.
Key pair: create a new one called demo-key, type RSA, format .pem. Your browser downloads the private key once — there is no second chance. (Or select Proceed without a key pair if you intend to connect with EC2 Instance Connect only.)
Network settings → Edit: leave the default VPC and subnet; under the security group choose Create security group, allow SSH from My IP — never 0.0.0.0/0.
Launch instance, then select it and click Connect → EC2 Instance Connect → Connect for a browser shell with no local key handling.

Verify: the instance shows Running with 2/2 or 3/3 status checks passed, and in the shell cat /etc/os-release prints Amazon Linux 2023.

The console is the fastest way to understand the launch wizard — every field maps to a concept from Core Concepts. It is also unrepeatable, unreviewable, and undiffable, which is why nothing you care about should be built this way.

Path 2 — AWS CLI (repeatable, scriptable)

Copy-pasteable, in order. Each block exports what the next one needs.

# 0. Region and a name we'll reuse
export AWS_REGION=us-east-1
export NAME=demo

# 1. Find the current Amazon Linux 2023 AMI — never hard-code an AMI ID.
#    AWS publishes the latest image ID in a public SSM parameter, per region.
export AMI_ID=$(aws ssm get-parameters \
  --names /aws/service/ami-amazon-linux-latest/al2023-ami-kernel-default-x86_64 \
  --query 'Parameters[0].Value' --output text)
echo "AMI: $AMI_ID"

# 2. Create a key pair. The private key is returned exactly once — save it now.
aws ec2 create-key-pair --key-name ${NAME}-key \
  --query 'KeyMaterial' --output text > ${NAME}-key.pem
chmod 400 ${NAME}-key.pem

# 3. Create a security group in the default VPC, allowing SSH from your IP only.
export VPC_ID=$(aws ec2 describe-vpcs --filters Name=is-default,Values=true \
  --query 'Vpcs[0].VpcId' --output text)

export SG_ID=$(aws ec2 create-security-group \
  --group-name ${NAME}-sg --description "Demo SG — delete me" \
  --vpc-id $VPC_ID --query 'GroupId' --output text)

export MY_IP=$(curl -s https://checkip.amazonaws.com)
aws ec2 authorize-security-group-ingress --group-id $SG_ID \
  --protocol tcp --port 22 --cidr ${MY_IP}/32

# 4. Launch it.
export INSTANCE_ID=$(aws ec2 run-instances \
  --image-id $AMI_ID \
  --instance-type t3.micro \
  --key-name ${NAME}-key \
  --security-group-ids $SG_ID \
  --metadata-options "HttpTokens=required,HttpPutResponseHopLimit=1" \
  --tag-specifications "ResourceType=instance,Tags=[{Key=Name,Value=${NAME}-instance}]" \
  --query 'Instances[0].InstanceId' --output text)

# 5. Wait until it's actually reachable, not merely 'running'.
aws ec2 wait instance-status-ok --instance-ids $INSTANCE_ID

# 6. Connect.
export PUBLIC_IP=$(aws ec2 describe-instances --instance-ids $INSTANCE_ID \
  --query 'Reservations[0].Instances[0].PublicIpAddress' --output text)
ssh -i ${NAME}-key.pem ec2-user@${PUBLIC_IP}

Two details in that run-instances call are not decoration:

--metadata-options HttpTokens=required enforces IMDSv2 from the start. Retrofitting this onto a running fleet is far more annoying than setting it at launch — see Core Concepts.
aws ec2 wait instance-status-ok waits for the status checks, not just the running state. running means the VM booted; it does not mean sshd is listening. This is the single most common "my automation is flaky" bug in EC2 scripting.

Verify: you get a shell prompt, and cat /etc/os-release shows Amazon Linux 2023.

Path 3 — Terraform (minimal — the real version comes later)

Create main.tf:

terraform {
  required_providers {
    aws = { source = "hashicorp/aws", version = "~> 5.0" }
  }
}

provider "aws" {
  region = "us-east-1"
}

# Look the AMI up rather than pinning an ID — AMI IDs differ per region
# and change every time AWS publishes a new image.
data "aws_ssm_parameter" "al2023" {
  name = "/aws/service/ami-amazon-linux-latest/al2023-ami-kernel-default-x86_64"
}

data "aws_vpc" "default" {
  default = true
}

data "http" "my_ip" {
  url = "https://checkip.amazonaws.com"
}

resource "aws_security_group" "demo" {
  name        = "demo-sg"
  description = "Demo SG - delete me"
  vpc_id      = data.aws_vpc.default.id

  ingress {
    description = "SSH from my IP only"
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["${chomp(data.http.my_ip.response_body)}/32"]
  }

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

resource "aws_instance" "demo" {
  ami                    = data.aws_ssm_parameter.al2023.value
  instance_type          = "t3.micro"
  vpc_security_group_ids = [aws_security_group.demo.id]

  metadata_options {
    http_tokens                 = "required"   # IMDSv2 only
    http_put_response_hop_limit = 1
  }

  tags = {
    Name = "demo-instance"
  }
}

output "public_ip" {
  value = aws_instance.demo.public_ip
}

terraform init      # download the AWS provider
terraform plan      # read this before every apply — it is the whole point of Terraform
terraform apply     # type 'yes'

Read the plan. Getting into the habit now — when the plan is six lines — is what makes you able to read one later when it's four hundred and one of the lines says forces replacement on your database.

Note what's missing on purpose: no variables, no remote state (your state file is sitting in this directory, unencrypted, unshared), no tags beyond Name, no environment separation, no root volume configuration. All of that is in Deployment. If you push this as-is, expect review comments.

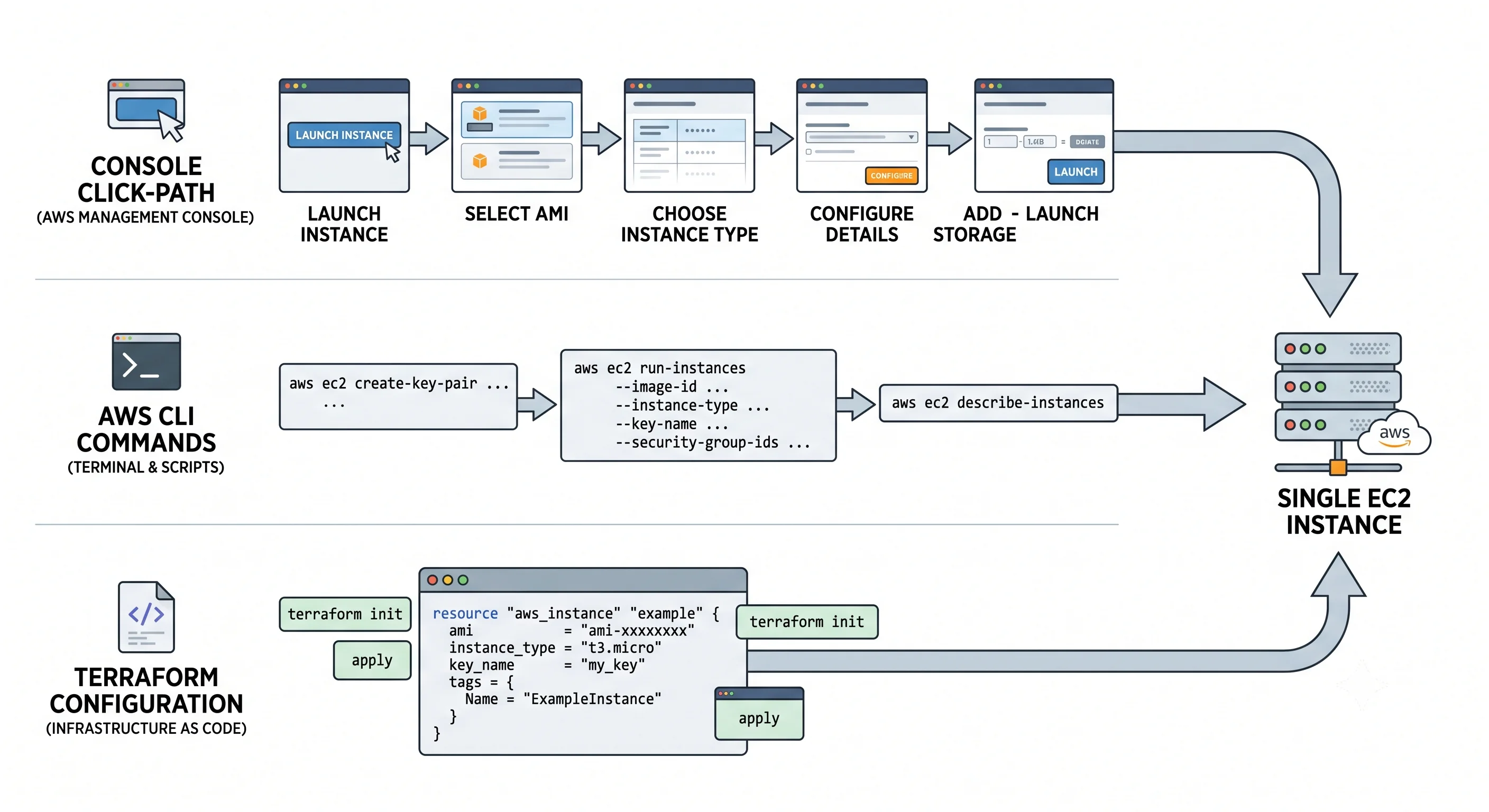

Three provisioning paths — Console click-path, AWS CLI, and Terraform — converging on the same single EC2 instance

When it doesn't work

The first-timer failures, in rough order of frequency:

Symptom	Cause	Fix
SSH hangs with no response	Security group doesn't allow 22 from your current IP	Your IP changed (VPN, café wifi, DHCP). Re-check with `curl https://checkip.amazonaws.com` and update the rule
`Permission denied (publickey)`	Wrong username or wrong key	Amazon Linux is `ec2-user`; Ubuntu is `ubuntu`; RHEL is `ec2-user`; Debian is `admin`
`WARNING: UNPROTECTED PRIVATE KEY FILE`	`.pem` permissions too open	`chmod 400 demo-key.pem`
No public IP assigned	Subnet doesn't auto-assign public IPs, or it's a private subnet	Use a default/public subnet, or launch with `--associate-public-ip-address`
`InsufficientInstanceCapacity`	AWS has no `t3.micro` in that AZ right now	Different AZ or instance type — see Architecture
`VcpuLimitExceeded`	Your account quota, not AWS capacity	Service Quotas increase request
`UnauthorizedOperation`	Your IAM principal lacks `ec2:RunInstances` (or `iam:PassRole`)	Fix the policy; the error names the action
Instance `running` but nothing works	You didn't wait for status checks	`aws ec2 wait instance-status-ok`

Teardown — do not skip this

Half of all surprise AWS bills come from forgotten demo resources. An idle instance still bills for compute; a deleted instance's orphaned EBS volume and unattached Elastic IP still bill for storage and address hours.

Terraform:

terraform destroy    # removes the instance and the security group

CLI:

aws ec2 terminate-instances --instance-ids $INSTANCE_ID
aws ec2 wait instance-terminated --instance-ids $INSTANCE_ID

# The SG can only be deleted once nothing references it — hence the wait above.
aws ec2 delete-security-group --group-id $SG_ID
aws ec2 delete-key-pair --key-name ${NAME}-key
rm -f ${NAME}-key.pem

Console: Instances → select → Instance state → Terminate instance. Then delete the security group and key pair separately — terminating the instance does not remove them.

Confirm nothing survived

Terminating an instance does not necessarily clean up everything attached to it. Check all four:

# Any instance still alive?
aws ec2 describe-instances \
  --filters "Name=instance-state-name,Values=running,stopped" \
  --query 'Reservations[].Instances[].[InstanceId,InstanceType,State.Name]' --output table

# Orphaned volumes — these bill per GB-month whether attached or not
aws ec2 describe-volumes --filters Name=status,Values=available \
  --query 'Volumes[].[VolumeId,Size,CreateTime]' --output table

# Unassociated Elastic IPs — these bill by the hour while idle
aws ec2 describe-addresses \
  --query 'Addresses[?AssociationId==`null`].[PublicIp,AllocationId]' --output table

# Snapshots you created and forgot
aws ec2 describe-snapshots --owner-ids self \
  --query 'Snapshots[].[SnapshotId,VolumeSize,StartTime]' --output table

DeleteOnTermination is the setting to know. The root volume defaults to true (deleted with the instance); additional attached volumes default to false and will quietly outlive the instance, billing forever. That's what the available-status volume check above is catching.

Check yourself

Why look the AMI up from SSM rather than hard-coding ami-0abc123?
What's the difference between the instance reaching running and passing instance-status-ok, and why does it break scripts?
You terminated the instance and your bill didn't go to zero. Name three things that could still be charging.
What does HttpTokens=required do, and what class of attack does it blunt?
Name three things in the Terraform above that would fail code review on a real project.

Next: Deployment rebuilds this properly: a parameterised Terraform module with a launch template, Auto Scaling group and load balancer, remote state, an Ansible playbook, the CloudFormation/CDK equivalent, CI/CD with OIDC, and rollback.
