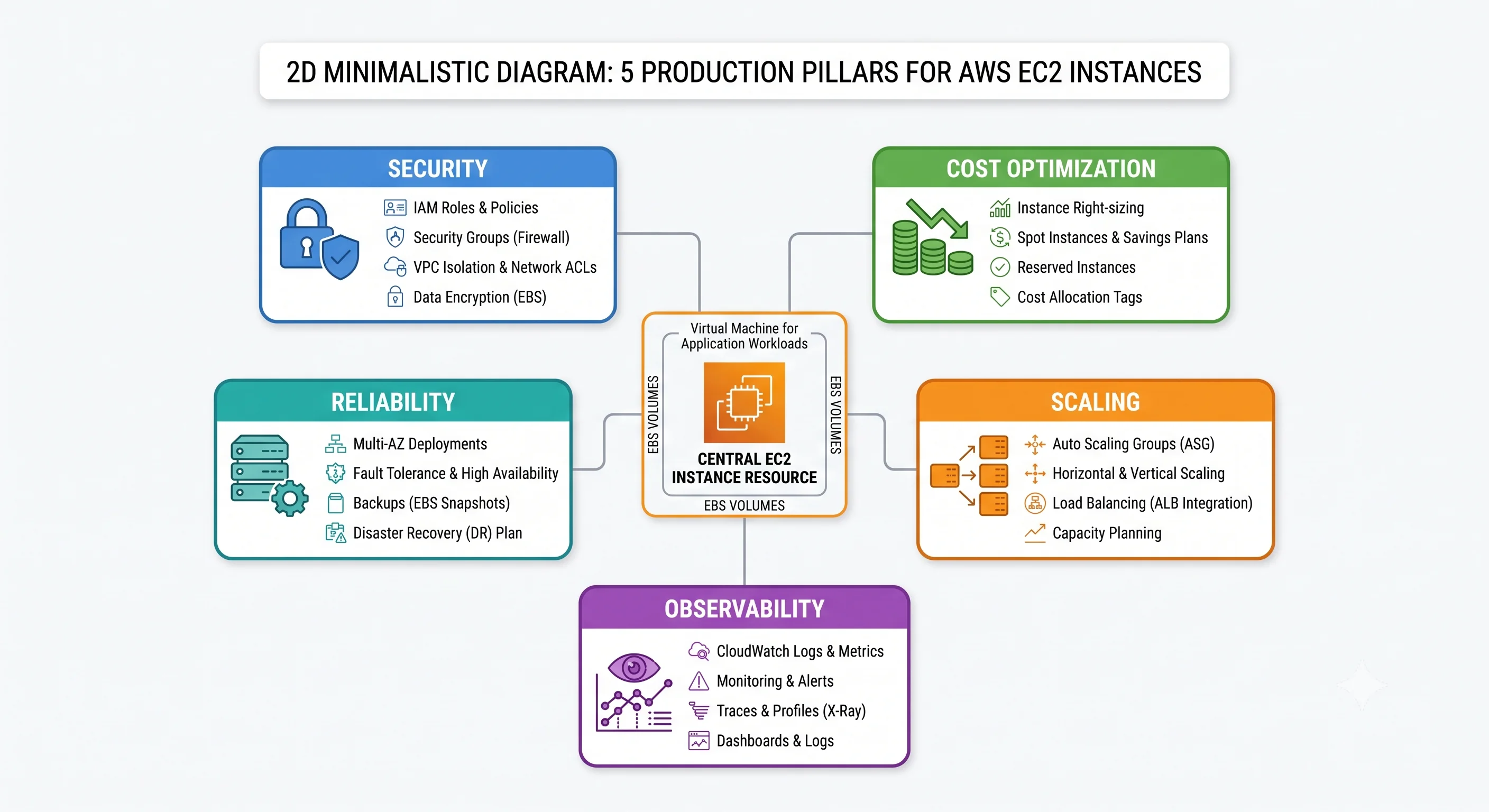

7. Production

Goal: the difference between "I made it work" and "I run this at scale, on call, without dreading the bill." Five pillars — security, cost, scaling and limits, observability, reliability.

Every number on this page is either flagged or framed as a concept, because quotas and prices are the fastest-moving facts in AWS. The shapes — what you're billed for, which metric reveals which failure, where the ceilings are — are durable.

---

1. Security

The access model: stop using SSH

The single highest-leverage change most teams can make to EC2 security is deleting port 22.

Old model	Cost of it	Replacement
SSH from the internet	An exposed port, brute-force traffic, key distribution, no per-session audit	SSM Session Manager
SSH via a bastion host	A host to patch and monitor, still keys to rotate	Session Manager (no bastion needed)
Shared key pair across a fleet	One leaked key compromises everything, and you can't revoke per-person	IAM-authorised sessions

aws ssm start-session --target i-0abc123def456

What you gain: IAM decides who may connect to which instances (taggable, so "developers may session into dev only" is a policy, not a convention), every session appears in CloudTrail, session contents can be recorded to S3 or CloudWatch Logs, and there is no inbound port and no private key anywhere.

If you must keep SSH — some compliance regimes and some tooling insist — then: no 0.0.0.0/0 on 22, ever; EC2 Instance Connect to inject ephemeral keys rather than distributing long-lived ones; and an alarm on any security group change that opens 22 or 3389 to the world.

IAM least privilege, applied to instance roles

The policy types, the evaluation algorithm, and the general least-privilege toolkit are in IAM & Identity. Applied to EC2:

• One role per service, not one role per fleet. Two applications sharing an instance profile means each can use the other's permissions — and an instance role is reachable by anything running on the box, so this is a wider grant than it looks.
• Scope resources, never "Resource": "*" for data actions. s3:GetObject on arn:aws:s3:::acme-artifacts/api/*, not on every bucket in the account.
• ec2:ResourceTag/Environment makes "developers may session into dev instances only" a policy rather than a convention — which is what makes tag-based access worth the tagging discipline.
• Audit for unused permissions on a schedule. Instance roles accrete permissions during incidents and nothing ever removes them.

IMDSv2, non-negotiable

Require it in the launch template (http_tokens = "required", hop_limit = 1). The threat is concrete: an SSRF bug in your application — "fetch this URL for me" — is otherwise a path to your role's credentials at 169.254.169.254, and from there to whatever that role can do. This has caused real, well-publicised breaches.

Audit existing fleets for stragglers:

aws ec2 describe-instances \
  --filters "Name=metadata-options.http-tokens,Values=optional" \
  --query 'Reservations[].Instances[].[InstanceId,Tags[?Key==`Name`].Value|[0]]' --output table

Encryption

• Turn on EBS encryption by default per account per region. Then nobody can forget, and it applies to every new volume and snapshot. ⚠️ verify the setting name/behaviour against current AWS docs
• In transit: TLS terminating at the ALB with an ACM certificate. Many Nitro instance types also encrypt inter-instance VPC traffic in hardware — useful for compliance answers, but don't rely on it as your only in-transit control.
• Customer-managed KMS keys where you need key rotation policy, cross-account grant control, or an audit trail of key use. AWS-managed keys are fine for lower-sensitivity data and involve less work.

Patching

Two philosophies. Pick one deliberately; drifting between them is the failure mode.

	Immutable (preferred)	In-place
How	Rebuild the AMI (Image Builder/Packer), roll the ASG via instance refresh	SSM Patch Manager patch baselines on running instances
Pros	Reproducible, testable in staging, no config drift, rollback = previous AMI	Fast, no capacity churn, works for long-lived stateful hosts
Cons	Needs an AMI pipeline; slower to ship an urgent CVE fix	Drift accumulates; "works on this box" divergence

Use Amazon Inspector for continuous CVE scanning of instances and AMIs — it removes the "we didn't know" excuse. Use Patch Manager with maintenance windows even in an immutable shop, as the break-glass path for a zero-day you can't wait to bake.

Public-exposure gotchas

The ways EC2 leaks, in order of how often they actually happen:

1. A security group open to 0.0.0.0/0 on 22, 3389, a database port, or an admin UI.
2. A publicly-shared EBS snapshot or AMI. Snapshots can be marked public — and they contain entire filesystems, credentials included. Audit regularly; this is a recurring source of real breaches.
3. An instance in a public subnet that didn't need to be there. Default to private.
4. Secrets in user data, readable from IMDS by anything running on the instance.
5. An over-permissive instance role, turning any application vulnerability into an account incident.

Guardrails that catch these automatically: AWS Config rules (restricted-ssh, ec2-imdsv2-check, encrypted-volumes), Security Hub standards for aggregate scoring, GuardDuty for behavioural detection (crypto-mining, contacting known-bad IPs, credential exfiltration patterns), and SCPs to make the worst actions impossible rather than merely detected.

---

2. Cost

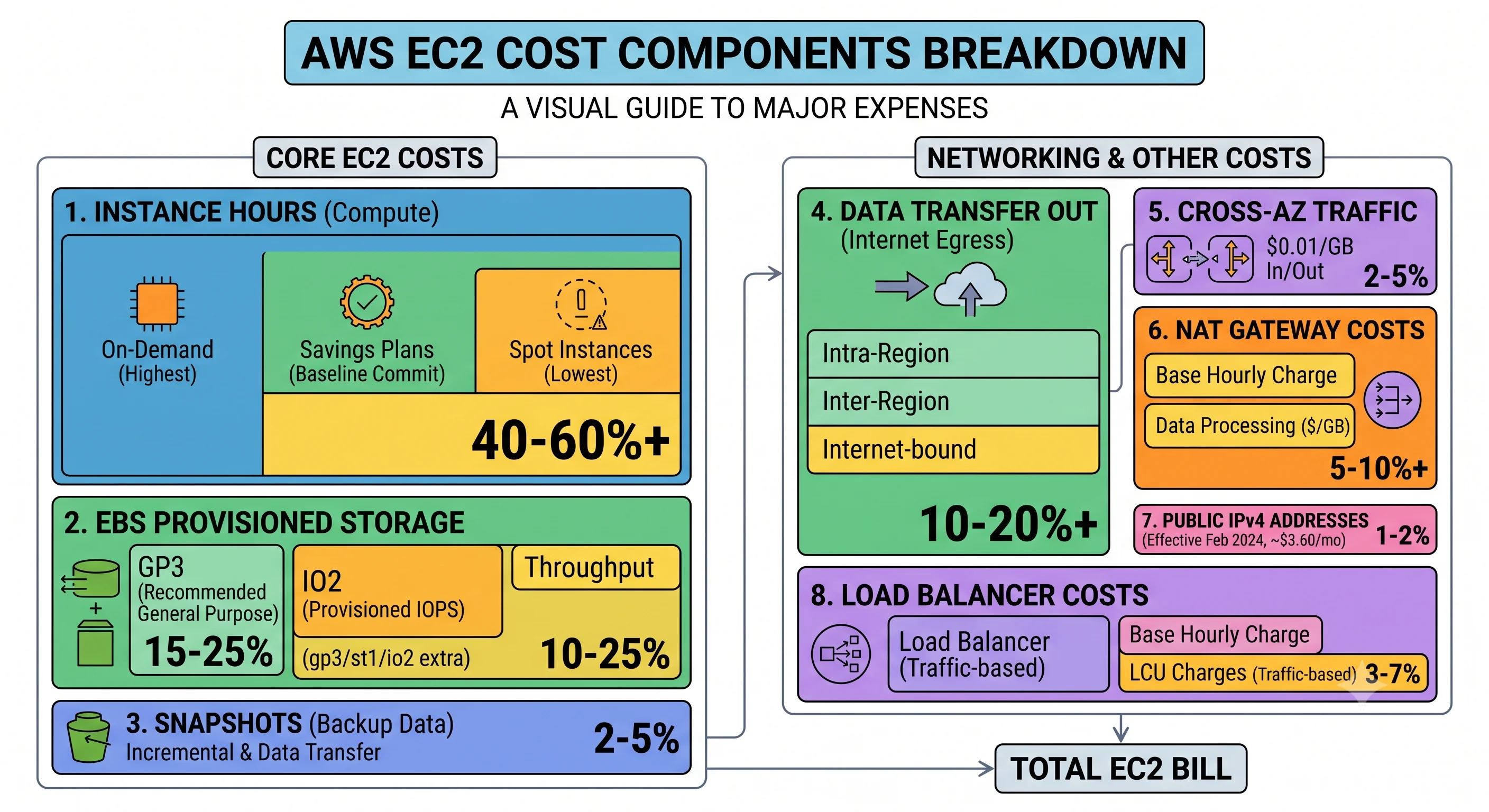

What you actually pay for

Charge	Shape	Notes
Instance hours	Per second while running (60s minimum on Linux; some OSes/Marketplace AMIs bill per hour)	stopped instances cost no compute
EBS volumes	Per GB-month provisioned, not used	A 500 GB volume 3% full bills 500 GB. Charged while the instance is stopped
EBS IOPS/throughput	Per provisioned unit above the included baseline (gp3), or all of it (io1/io2)	Easy to over-provision and forget
Snapshots	Per GB-month of changed blocks stored	Accumulate silently forever without a lifecycle policy
Data transfer out to internet	Per GB, tiered	Usually the largest transfer line
Cross-AZ traffic	Per GB, both directions	The invisible microservices tax
Public IPv4 addresses	Per address-hour, in use and idle	Fleet-wide, this adds up
NAT gateway	Per hour plus per GB processed	Frequently the biggest surprise on the bill
Load balancer	Per hour plus LCU/capacity units
Detailed monitoring	Per instance per month	Worth it for anything auto-scaling
Data transfer in	Free
Intra-AZ traffic via private IPs	Free	Another reason to prefer private addressing

The biggest cost traps

1. Idle and forgotten instances. Dev boxes running all weekend; instances from a demo three months ago. This is the number-one line item on most wasteful bills.
2. Over-provisioned instances. A fleet at 8% CPU on m6i.4xlarge. Nobody gets fired for over-provisioning, which is exactly why it persists.
3. Orphaned EBS volumes and snapshots. DeleteOnTermination = false volumes surviving their instances, plus years of snapshots with no expiry.
4. NAT gateway data processing. Every artifact pull, every dnf update, every S3 read from a private subnet without a gateway endpoint.
5. Cross-AZ chatter. A chatty service mesh spread across three AZs pays per GB for every internal hop.
6. t-family unlimited-mode surplus credits. Silent, unbounded overage on instances chosen because they were cheap.
7. Idle Elastic IPs and public IPv4 addresses on instances that don't need them.

Concrete optimisations, roughly by effort/return

Move	Effort	Typical return
Stop non-prod outside business hours (Instance Scheduler / EventBridge)	Low	Large — a dev fleet running 40% of the week
Migrate gp2 → gp3	Low	Meaningful, immediate; usually cheaper at equal performance
Delete orphaned volumes; lifecycle old snapshots	Low	Recurring
Add an S3 gateway endpoint	Low	Kills NAT charges for S3 traffic
Right-size from Compute Optimizer recommendations	Medium	Often the single biggest win
Move to Graviton (*g) instance types	Medium (rebuild for ARM64)	Substantial per-hour saving at similar performance for many workloads
Spot for stateless/interruptible tiers	Medium (needs interruption handling)	Very large discount vs On-Demand
Savings Plans on your steady baseline	Low (a commitment decision)	Large, guaranteed
Consolidate cross-AZ hot paths	High	Depends entirely on traffic shape

Discount percentages, Graviton price/performance deltas, and gp3-vs-gp2 economics all shift with each generation and pricing update. ⚠️ verify current figures against the AWS pricing pages and Cost Explorer for your own usage before putting numbers in a business case.

The Savings Plan strategy that survives contact with reality: commit to your floor, not your average. Cover the baseline you are certain to run for the full term with Compute Savings Plans (flexible across family, size, region, and even Fargate/Lambda), serve the predictable middle with On-Demand, and put the spiky top on Spot. Over-committing is worse than under-committing — unused commitment is pure waste, whereas uncovered usage merely costs full price.

Make cost visible or it won't improve: enforced tagging (Environment, Service, Owner, CostCenter), cost allocation tags activated in Billing, AWS Budgets with alerts per team, and Cost Anomaly Detection for the step-changes nobody announced.

---

3. Scaling and limits

The quotas that actually bite

Quota	Type	Notes
Running On-Demand vCPUs per instance-family group, per region	Soft	Counted in vCPUs, not instances. Separate quotas for standard (A/C/D/H/I/M/R/T/Z), and for G, P, Inf, Trn, X, DL, HPC families
Running Spot vCPUs per family group	Soft	A completely separate quota from On-Demand — a common surprise
EBS storage per volume type, per region	Soft	TiB-denominated; large fleets hit this
Snapshots per region	Soft
Elastic IPs per region	Soft, and low by default	The classic early-account wall
Instances per Auto Scaling group / ASGs per region	Soft
Launch template versions	Soft	Matters for long-lived, frequently-deployed services
Instance type availability per AZ	Hard and momentary	Not a quota — this is InsufficientInstanceCapacity

Every default number here changes. ⚠️ verify against Service Quotas in your own account

How quotas work in general — soft vs. hard, per account and per region, requesting increases, alarming on utilisation before you hit the ceiling — is covered in ARNs, Tagging & Quotas.

What's distinctive about EC2's:

• They're counted in vCPUs, not instances. Twenty large instances and five 4xlarge may consume identical quota. Capacity planning in "number of instances" will mislead you.
• Family groups, not individual types. All standard families share one quota; accelerated families each have their own. Switching from m6i to c6i doesn't need a new quota; switching to p4d does.
• On-Demand and Spot are separate quotas — which is how a mixed instances policy gets blocked by a limit nobody knew existed.

aws service-quotas get-service-quota \
  --service-code ec2 --quota-code L-1216C47A   # Running On-Demand Standard instances (vCPUs)

Where scaling actually stalls

Bottleneck	Symptom	Fix
vCPU quota	VcpuLimitExceeded	Quota increase (ahead of time)
AZ capacity	InsufficientInstanceCapacity	Diversify types and AZs; ASG mixed instances policy; Capacity Reservations for critical workloads
Warm-up time	Traffic spikes faster than instances boot	Golden AMIs, warm pools, predictive/scheduled scaling, headroom
Metric lag	Scaling reacts minutes late	Detailed (1-minute) monitoring; target tracking on a leading indicator (e.g. request count per target, not CPU)
A single-threaded dependency	Adding instances doesn't help	The database, the lock, the queue consumer — fix the actual constraint
Max size	ASG stops at the ceiling	Raise max_size deliberately; it's also your runaway-cost guardrail

Scale on the right metric. CPU is a lagging, indirect signal for a web tier. ALBRequestCountPerTarget is directly proportional to the load you're trying to distribute and reacts sooner. For queue workers, scale on queue depth (or better, queue depth per instance) rather than CPU.

---

4. Observability

Metrics that matter

Free from EC2:

Metric	Alarm-worthy when	Reveals
StatusCheckFailed_System	≥1 for 2 datapoints	Host/infrastructure failure — often auto-recovers
StatusCheckFailed_Instance	≥1 for 2 datapoints	Your OS problem: panic, full disk, broken network
CPUUtilization	Sustained high/low	Load, and right-sizing evidence
CPUCreditBalance	Trending to 0 on t instances	Imminent throttling or unlimited-mode overage
NetworkIn / NetworkOut	Deviation from baseline	Traffic shifts, exfiltration, runaway retries
EBSIOBalance% / EBSByteBalance%	< 20%	Burst credits depleting on smaller instances

Only with the CloudWatch agent — and this is the gap that matters:

• mem_used_percent — memory is invisible to EC2 by default. The resource most likely to OOM-kill your application is the one you don't get for free.
• disk_used_percent — a full / is one of the most common "instance status check failed" causes.
• Per-process metrics, and your application logs.

ENA driver allowance metrics are the expert-level ones, and they explain otherwise-baffling plateaus: bw_in_allowance_exceeded, bw_out_allowance_exceeded, pps_allowance_exceeded, conntrack_allowance_exceeded. When throughput flatlines below the documented instance maximum and CPU is idle, one of these is non-zero. conntrack_allowance_exceeded in particular catches connection-tracking exhaustion on instances handling huge numbers of short-lived connections — a failure that looks like random packet loss.

From the ALB and ASG (usually your best service-health signals):

Metric	Why
TargetResponseTime (p90/p99, not average)	Real user latency. Averages hide the tail that people notice
HTTPCode_Target_5XX_Count	Your application failing
HTTPCode_ELB_5XX_Count	The LB failing to reach targets — a different problem, different fix
UnHealthyHostCount	Capacity quietly disappearing
RejectedConnectionCount	You've hit a limit
GroupInServiceInstances vs GroupDesiredCapacity	The ASG can't reach desired — capacity or quota problem

What to alarm on

Alarm on the aggregate, not the instance. An alarm on one instance in a fleet designed for disposability is noise — the ASG replacing it is the system working. Alarm on:

• Service level: p99 latency, 5XX rate, UnHealthyHostCount > 0, healthy host count below your minimum-viable capacity.
• Fleet level: GroupInServiceInstances < desired for more than N minutes; ASG at max_size.
• Instance level, but only for things nothing else fixes: StatusCheckFailed_Instance, disk_used_percent > 85%, CPUCreditBalance approaching zero.
• Cost: Budget threshold breached, Cost Anomaly Detection finding.
• Security: GuardDuty finding, security group opened to 0.0.0.0/0, IMDSv1 instance launched.

Use composite alarms to suppress the cascade — one page saying "the service is degraded" beats forty saying "an instance is unhealthy."

Logs and traces

• Ship logs off the instance immediately. An instance is disposable; its logs must outlive it. CloudWatch agent → CloudWatch Logs, or an agent to your own stack.
• Set log group retention. The default is never expire, which is a slow, permanent cost leak. Pick 7/30/90 days per log group deliberately.
• Structure your logs (JSON) so CloudWatch Logs Insights can query them. Grepping unstructured text at 3 a.m. is a choice you make in advance.
• X-Ray or an OpenTelemetry pipeline for request tracing once more than two services are involved. "Which hop is slow" is unanswerable from per-service metrics alone.

---

5. Reliability

Posture

Level	What it survives	What it costs
One instance	Nothing. It will be retired, rebooted, or degraded eventually	Cheapest, not a service
ASG, single AZ	Instance and host failure	Cheap; an AZ event is a full outage
ASG, 3 AZs, behind an ALB	Instance, host, and AZ failure	The standard. Cross-AZ traffic charges
Multi-region active/passive	Regional failure	Significant — duplicated infrastructure, data replication, DNS failover
Multi-region active/active	Regional failure with no failover step	Highest — and hardest, because of data consistency

Static stability, restated because it's the design principle people skip: provision enough capacity across AZs to absorb the loss of one without needing to launch anything. If losing an AZ requires RunInstances to succeed, your recovery depends on the control plane at the moment it's most stressed — and on capacity being available in the surviving AZs, where everyone else is also scrambling. Three AZs each at ~50% utilisation survive an AZ loss with no new launches. That headroom is the price of reliability, and it's cheaper than the outage.

Backup and restore

• Replication is not backup. EBS replicates within an AZ, which protects against device failure and nothing else — not rm -rf, not ransomware, not a bad migration.
• AWS Backup with tag-based selection, a retention lifecycle, and cross-region copies for anything whose loss would be existential.
• Test restores on a schedule. An untested backup is a hypothesis. Time the restore and write the number down — that number is your RTO, whatever the plan claims.
• Know your RPO and RTO per workload, and make sure the snapshot frequency actually matches the RPO you promised.

The failure drill

Rehearse these before they happen, in staging first:

Drill	What you're testing
Terminate a random instance in prod	Does the ASG replace it? Does anyone notice? Any state lost?
Fail the health check on one instance	Is it drained cleanly, or are requests dropped?
Simulate AZ loss (set one subnet's desired capacity to 0)	Do the remaining AZs absorb the load without new launches?
Restore a volume from a snapshot into a new AZ	Do you know the commands? How long did it take?
Force a spot interruption (send-spot-instance-interruptions)	Does your handler drain and checkpoint correctly?
Roll back a deployment	Is your documented rollback still accurate?
Revoke the instance role's key permission	Do you get a clear failure or a silent one?

The value isn't proving it works. It's finding the runbook step that references a tool you decommissioned last year — while everyone is awake and nothing is on fire.

Handling AWS-initiated events

Subscribe to AWS Health events via EventBridge and automate the response. Instance retirement, scheduled reboots, and volume retirement are routine if instances are disposable and incidents if they're pets. Automation: on a retirement notice, detach the instance from the ASG (which triggers a replacement) and terminate it during business hours — rather than letting AWS do it at 4 a.m. on the scheduled date.

---

Production readiness checklist

Copy this into your PR template.

Security

• No 0.0.0.0/0 ingress except on the load balancer's public ports
• No SSH key pairs; Session Manager access, IAM-scoped
• IMDSv2 required, hop limit 1
• EBS encryption by default enabled; volumes encrypted
• Instance role scoped to specific resources; no "Resource": "*" on data actions
• No secrets in user data or the AMI
• Instances in private subnets; ALB in public
• GuardDuty, Inspector, and Config rules enabled and someone owns the findings

Cost

• Tagged: Environment, Service, Owner, CostCenter
• Right-sized against Compute Optimizer, not guessed
• Savings Plan or Spot strategy decided for this workload
• Non-prod on a stop schedule
• gp3, not gp2; snapshot lifecycle policy in place
• S3 gateway endpoint present if instances read S3
• Budget alert covering this service

Scaling

• vCPU quota headroom verified for peak plus a replacement AZ
• ASG spans ≥ 3 AZs; min_size ≥ 2
• Scaling on a leading metric (request count per target), not just CPU
• Detailed monitoring on
• max_size set deliberately as a cost guardrail

Observability

• CloudWatch agent installed: memory, disk, logs
• Log groups have retention set (not "never expire")
• Alarms on service aggregates, not individual instances
• Composite alarm for "service degraded" to suppress cascades
• Dashboard someone actually looks at
• Runbook linked from every alarm description

Reliability

• health_check_type = "ELB" with a real /health endpoint
• Grace period and deregistration_delay tuned
• Enough headroom to lose an AZ without launching (static stability)
• Backups via AWS Backup, cross-region for critical data
• Restore tested, duration recorded
• AWS Health events routed to EventBridge and handled
• Spot interruption handler, if using Spot
• Rollback procedure documented and rehearsed

---

Check yourself

• Give the full argument for replacing SSH with Session Manager — including what you give up.
• Your bill jumped 30% with no traffic change and no new instances. Name four candidate causes and how you'd distinguish them.
• Why is On-Demand vCPU quota separate from Spot vCPU quota, and how does that bite an ASG with a mixed instances policy?
• Throughput plateaus well below the instance type's documented maximum, CPU is idle, EBS looks fine. What do you check?
• Why is alarming on an individual instance's CPU in a 20-instance ASG usually wrong? What's the right alarm?
• Explain static stability to someone who says "we'll just auto-scale into the surviving AZs." What's wrong with their plan?
• Your RTO is 15 minutes. What must you have actually measured to make that claim honestly?

---

Next: Interview Questions — three tiers, with answer keys.

← Back to the EC2 overview · ← Previous: Integrations
