6. Integrations

Goal: no AWS service is an island, and EC2 is the least island-like of all — it's the substrate a large part of the catalogue is built on. This page covers what EC2 is almost always wired to, why, and the specific mechanism that does the wiring.

Three categories, because they behave differently:

1. Mandatory — EC2 does not function without them (VPC, EBS, IAM).
2. The standard fleet pattern — what turns instances into a service (ELB, Auto Scaling, Route 53, ACM).
3. Operational and data-plane companions — what you add to run it well (CloudWatch, SSM, S3, Secrets Manager, RDS, EFS, KMS, EventBridge, Backup).

Plus a fourth worth naming explicitly: the services that are EC2 underneath (ECS, EKS, EMR, Batch).

---

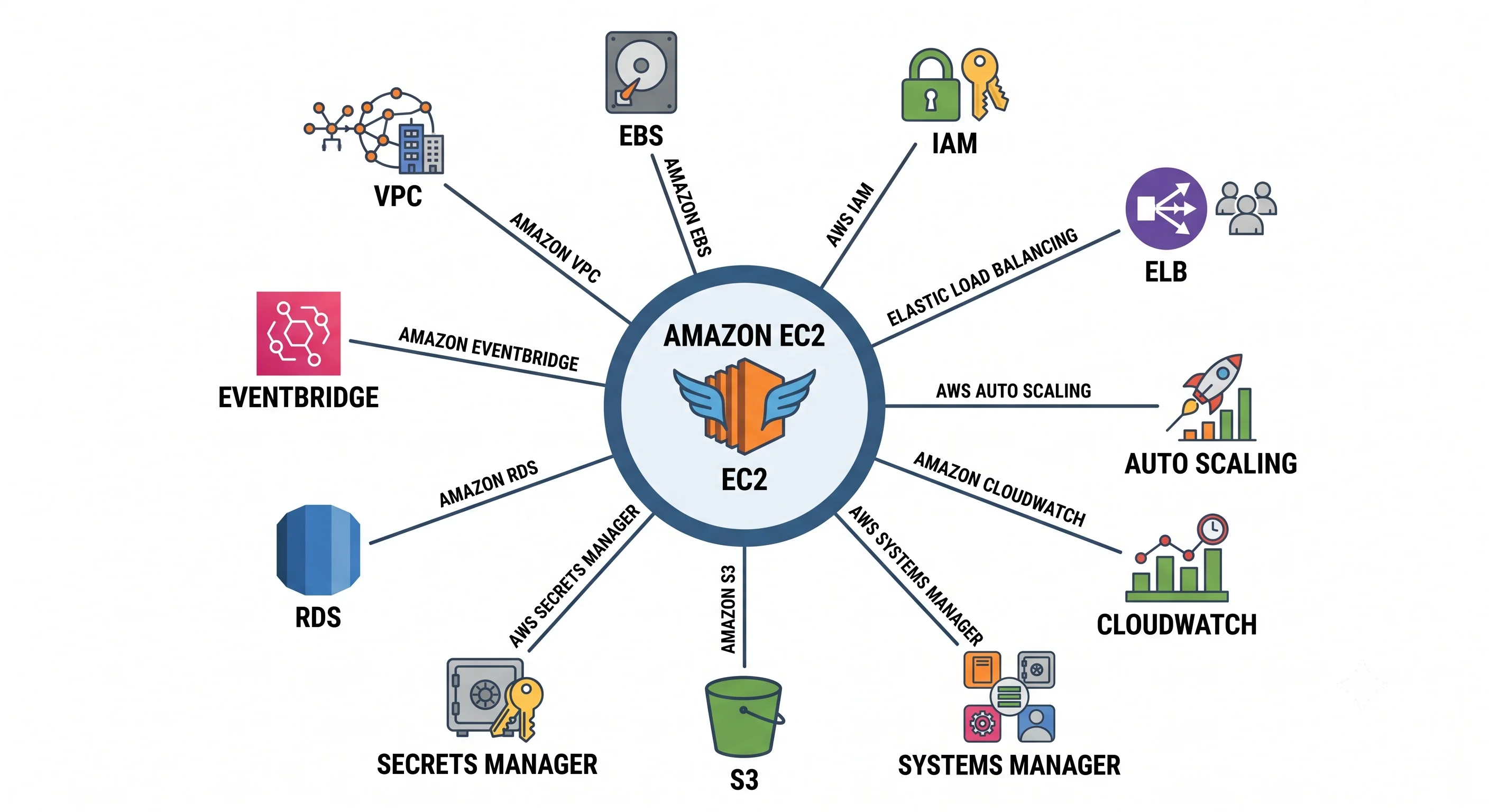

The map

Pairs with	Why	The glue
VPC	Every instance needs a network	ENI in a subnet + security group + route table
EBS	Durable disk	Volume attached over the network; block device mapping in the launch template
IAM	Permissions without stored credentials	Instance profile → role → temporary creds via IMDS
Elastic Load Balancing	One URL in front of many instances	Target group registration + health checks
Auto Scaling	Keep N healthy instances, scale on demand	Launch template + ASG + scaling policies
Route 53	A name people can type	Alias A-record → ALB DNS name
ACM	TLS without managing certificates	Certificate attached to the ALB HTTPS listener
CloudWatch	Metrics, logs, alarms	Built-in metrics + CloudWatch agent for memory/disk/logs
Systems Manager	Shell access, patching, config	SSM Agent + instance profile; Session Manager, Patch Manager, Parameter Store
S3	Artifacts, backups, static assets	Instance role + gateway VPC endpoint (no NAT charges)
Secrets Manager / Parameter Store	Credentials at boot, not in AMIs	SDK call authorised by the instance role
RDS / ElastiCache	The data tier	Security-group-to-security-group rule, IAM auth optional
EFS	A filesystem shared by every instance	NFS mount over an ENI in each AZ
KMS	Encryption at rest	EBS volume encryption; grants tied to the instance role
EventBridge	React to what EC2 does	Instance state-change, spot interruption, and scheduled-event rules
AWS Backup	Snapshots with a retention policy	Backup plan targeting instances/volumes by tag
EC2 Image Builder / Packer	Reproducible AMIs	Pipeline producing a versioned AMI consumed by the launch template
CloudTrail	Who launched/terminated what	Management-event logging, on by default; the forensic record
ECS / EKS / EMR / Batch	Higher-level compute	These run on EC2 — your instances are their capacity

---

1. Mandatory

VPC — the network EC2 lives in

Every instance gets an ENI in exactly one subnet, and the subnet's AZ determines the instance's AZ. The consequences worth holding onto:

• Public vs. private is a routing property, not a checkbox. A subnet is "public" because its route table sends 0.0.0.0/0 to an internet gateway. Private subnets reach the internet outbound through a NAT gateway — which is billed per hour and per GB processed, and is one of the top surprise line items in AWS bills.
• VPC endpoints let private instances reach AWS services without a NAT gateway. Two flavours, and the difference is financial:

Endpoint type	Services	Cost shape
Gateway	S3 and DynamoDB only	No hourly charge — a route-table entry. Effectively free
Interface (PrivateLink)	Almost everything else — SSM, Secrets Manager, ECR, CloudWatch…	Hourly charge per endpoint per AZ, plus per-GB. Cheaper than NAT at volume, not free

The concrete pattern for the architecture in Deployment: instances in private subnets need SSM to work, which means three interface endpoints — ssm, ssmmessages, ec2messages — or a NAT gateway. Add the S3 gateway endpoint regardless; it's free and it removes a large slice of NAT traffic.

resource "aws_vpc_endpoint" "s3" {
  vpc_id            = var.vpc_id
  service_name      = "com.amazonaws.${var.region}.s3"
  vpc_endpoint_type = "Gateway"
  route_table_ids   = var.private_route_table_ids
}

resource "aws_vpc_endpoint" "ssm" {
  for_each            = toset(["ssm", "ssmmessages", "ec2messages"])
  vpc_id              = var.vpc_id
  service_name        = "com.amazonaws.${var.region}.${each.key}"
  vpc_endpoint_type   = "Interface"
  subnet_ids          = var.private_subnet_ids
  security_group_ids  = [aws_security_group.endpoints.id]
  private_dns_enabled = true
}

EBS — covered in depth elsewhere

The integration mechanics are in Core Concepts and the network-storage path in Architecture. The one integration point worth repeating here: EBS is AZ-scoped, so a volume cannot follow an instance to another AZ. Snapshots (or EFS, or the application layer) are how data crosses that boundary.

IAM — the instance profile

The glue: an instance profile wraps exactly one role; the instance obtains temporary credentials for it from IMDS; every AWS SDK finds them automatically through the default credential chain. No keys on disk, no keys in user data, no keys in the AMI.

data "aws_iam_policy_document" "app" {
  statement {
    sid       = "ReadArtifacts"
    actions   = ["s3:GetObject"]
    resources = ["arn:aws:s3:::acme-artifacts/api/*"]   # not "*"
  }

  statement {
    sid       = "ReadOwnSecrets"
    actions   = ["secretsmanager:GetSecretValue"]
    resources = [aws_secretsmanager_secret.db.arn]
  }
}

Two things that catch people specifically with EC2:

• iam:PassRole is why your deploy pipeline fails. A principal that can RunInstances still gets UnauthorizedOperation until it also holds iam:PassRole on the specific role ARN being attached. Why it's a separate permission is explained in IAM & Identity.
• Role changes take effect without a restart, but the credentials already cached on the instance live out their remaining lifetime — so a policy fix can take several minutes to appear to work. Don't conclude the policy is wrong and start changing more things.

---

2. The fleet pattern

Elastic Load Balancing + Auto Scaling

These two are functionally one integration: the ASG registers instances into a target group, and the load balancer only sends traffic to targets passing the target group's health check.

Load balancer	Layer	Reach for it when
ALB	7 (HTTP/HTTPS)	Web apps — path/host routing, TLS termination, WAF integration, OIDC auth
NLB	4 (TCP/UDP/TLS)	Extreme throughput, static IPs, non-HTTP protocols, or you need the client IP preserved without headers
GWLB	3	Inserting third-party firewall/inspection appliances

The health-check chain is where deploys go wrong, and it has three independent links:

1. EC2 status checks — is the VM alive? (see Architecture)
2. Target group health check — does /health return 200?
3. ASG health check type — which of the above the ASG acts on.

Set health_check_type = "ELB". With the default (EC2), the ASG happily keeps an instance whose application has been dead for an hour, because the hypervisor says it's fine.

Two knobs that prevent self-inflicted outages:

• health_check_grace_period — how long after launch before health checks count. Too short and the ASG kills instances mid-boot, then launches replacements that also get killed: an infinite, expensive replacement loop.
• deregistration_delay (connection draining) — how long the LB lets in-flight requests finish before cutting an instance off. Too short and every scale-in event drops live requests.

Lifecycle hooks pause an instance in Pending:Wait or Terminating:Wait so you can act — register with a service mesh on the way in, flush logs or checkpoint on the way out. This is also the correct place to handle a spot interruption gracefully.

Route 53 + ACM

resource "aws_route53_record" "app" {
  zone_id = data.aws_route53_zone.main.zone_id
  name    = "api.example.com"
  type    = "A"

  alias {
    name                   = aws_lb.app.dns_name
    zone_id                = aws_lb.app.zone_id
    evaluate_target_health = true
  }
}

Use an alias record, not a CNAME. Alias records resolve at the zone apex (a CNAME cannot), cost nothing to query, and let Route 53 health-evaluate the target. Never point DNS at an instance IP — it defeats the entire point of the ASG.

ACM certificates attach to the ALB listener and renew automatically as long as DNS validation records stay in place. The failure mode is silent: someone deletes the validation CNAME, and eleven months later the renewal fails.

---

3. Operational companions

CloudWatch

What you get free, and what you don't:

Available by default	Requires the CloudWatch agent
CPU utilisation, network in/out, disk device I/O, status checks	Memory utilisation, disk space used, per-process metrics, application logs

Memory is not a default EC2 metric. This surprises people constantly. The hypervisor can see CPU and network; it cannot see inside your OS's memory accounting. Install the CloudWatch agent (via SSM Distributor or the AMI) or you're operating blind on the resource most likely to kill your application.

Metric resolution: basic monitoring is 5-minute; detailed monitoring is 1-minute and costs extra. For anything auto-scaling, pay for detailed — a 5-minute metric means a 5-minute-late scaling decision.

Systems Manager — the one most teams under-use

SSM is the operations layer for EC2, and it needs only the SSM Agent (pre-installed on Amazon Linux and recent Ubuntu/Windows AMIs) plus AmazonSSMManagedInstanceCore on the instance role.

Capability	What it replaces
Session Manager	SSH, bastion hosts, port 22, key pair management
Run Command	Ad-hoc ssh host "command" across a fleet
Patch Manager	Hand-rolled cron yum update scripts
Parameter Store	Config files baked into AMIs
Inventory / Compliance	"What's actually installed on these 200 boxes?"
Automation runbooks	Wiki pages describing manual procedures

aws ssm start-session --target i-0abc123def456

Why Session Manager beats SSH, concretely: no inbound port at all (the agent dials out), IAM controls who may connect to which instances, every session is logged to CloudTrail and optionally recorded to S3/CloudWatch Logs, and there is no private key to distribute, rotate, or leak. The cost is a dependency on the agent and on SSM reachability — hence the interface endpoints above.

S3

The three standard uses: artifacts (the tarball Ansible fetches), backups, and static assets you'd rather not serve from an instance at all.

The integration detail worth knowing: with the S3 gateway endpoint, that traffic never traverses the NAT gateway, so it's free of both NAT hourly and NAT data-processing charges. On a fleet pulling artifacts on every scale-out, this is real money for a five-line resource.

Secrets Manager / Parameter Store

The anti-pattern: credentials in user data (visible in IMDS to anything on the box), in the AMI (baked into every launch, undeletable from snapshots), or in environment variables committed to git.

The pattern: the instance role grants secretsmanager:GetSecretValue on one specific secret ARN; the app fetches at startup. Rotation then becomes a Secrets Manager concern, not a redeploy.

	Secrets Manager	Parameter Store (SecureString)
Automatic rotation	✅ built-in, with Lambda rotation functions	❌ roll your own
Cost	Per secret per month + API calls	Standard tier free; advanced tier charged
Use for	Database credentials, API keys needing rotation	Config values, feature flags, non-rotating secrets

RDS / ElastiCache — the data tier

The glue is a security-group reference, not a CIDR:

resource "aws_vpc_security_group_ingress_rule" "db_from_app" {
  security_group_id            = aws_security_group.db.id
  referenced_security_group_id = aws_security_group.app.id   # ← not 10.0.0.0/16
  ip_protocol                  = "tcp"
  from_port                    = 5432
  to_port                      = 5432
}

This survives re-IPing, expresses intent readably, and means new instances are authorised automatically by virtue of being in the app SG. RDS also supports IAM database authentication, which lets the instance role generate a short-lived token instead of holding a password at all — excellent where your database engine and driver support it.

EFS — when instances need shared state

EBS attaches to one instance in one AZ. EFS is an NFS filesystem mountable by every instance across every AZ simultaneously — the answer for shared uploads, shared config, or a legacy app that assumes a common filesystem.

The honest trade-off: it's network-attached NFS. Latency per operation is much higher than local EBS, metadata-heavy workloads (millions of small files, heavy stat traffic) perform poorly, and cost per GB is higher. It's a compatibility and sharing tool, not a performance tool. If shared state is only needed because instances aren't stateless, fixing the statelessness is usually the better move.

EventBridge — reacting to EC2

EC2 emits events you should be acting on:

Event	Why you care
EC2 Instance State-change Notification	Audit and automation on launch/terminate
EC2 Spot Instance Interruption Warning	Your ~2-minute notice to drain and checkpoint
EC2 Instance Rebalance Recommendation	Earlier, softer warning that a spot instance is at elevated risk
AWS Health events	Scheduled retirement/maintenance on your instances
ASG lifecycle events	Instance launching/terminating hooks

resource "aws_cloudwatch_event_rule" "spot_interruption" {
  name = "spot-interruption-warning"
  event_pattern = jsonencode({
    source      = ["aws.ec2"]
    detail-type = ["EC2 Spot Instance Interruption Warning"]
  })
}

If you run spot without handling this event, you are choosing to drop requests. The handler should deregister the instance from its target group, stop accepting work, flush state, and exit — inside the notice window.

AWS Backup + KMS

AWS Backup replaces hand-rolled snapshot cron jobs: a backup plan selects resources by tag, applies a schedule and lifecycle (transition to cold storage, expire after N days), and reports compliance centrally. Tag-based selection means new instances are protected automatically.

KMS encrypts EBS volumes and snapshots. Turn on EBS encryption by default at the account/region level so nobody can forget. Two gotchas: a snapshot encrypted with a customer-managed key can only be shared with accounts you've granted key access, and cross-region copies must be re-encrypted with a key in the destination region.

---

4. The services that are EC2 underneath

Service	Relationship
ECS on EC2	Your instances, running the ECS agent, form the cluster capacity. You patch and scale the hosts
ECS/EKS on Fargate	Still EC2-class hardware, in an AWS-managed account. You never see an instance
EKS managed node groups	EC2 instances in your account, lifecycle-managed by EKS via ASGs
EMR	Clusters of EC2 instances; core/task node split maps directly onto on-demand/spot purchasing
AWS Batch	Provisions and tears down EC2 (or Fargate) capacity per job queue
Elastic Beanstalk	Provisions an ASG + ELB for you and leaves the instances visible

This is why EC2 is worth learning deeply even if you never launch one directly. Every one of these inherits EC2's instance types, AMIs, security groups, instance profiles, spot behaviour, and capacity errors. InsufficientInstanceCapacity looks identical whether you asked for it or your EKS node group did.

---

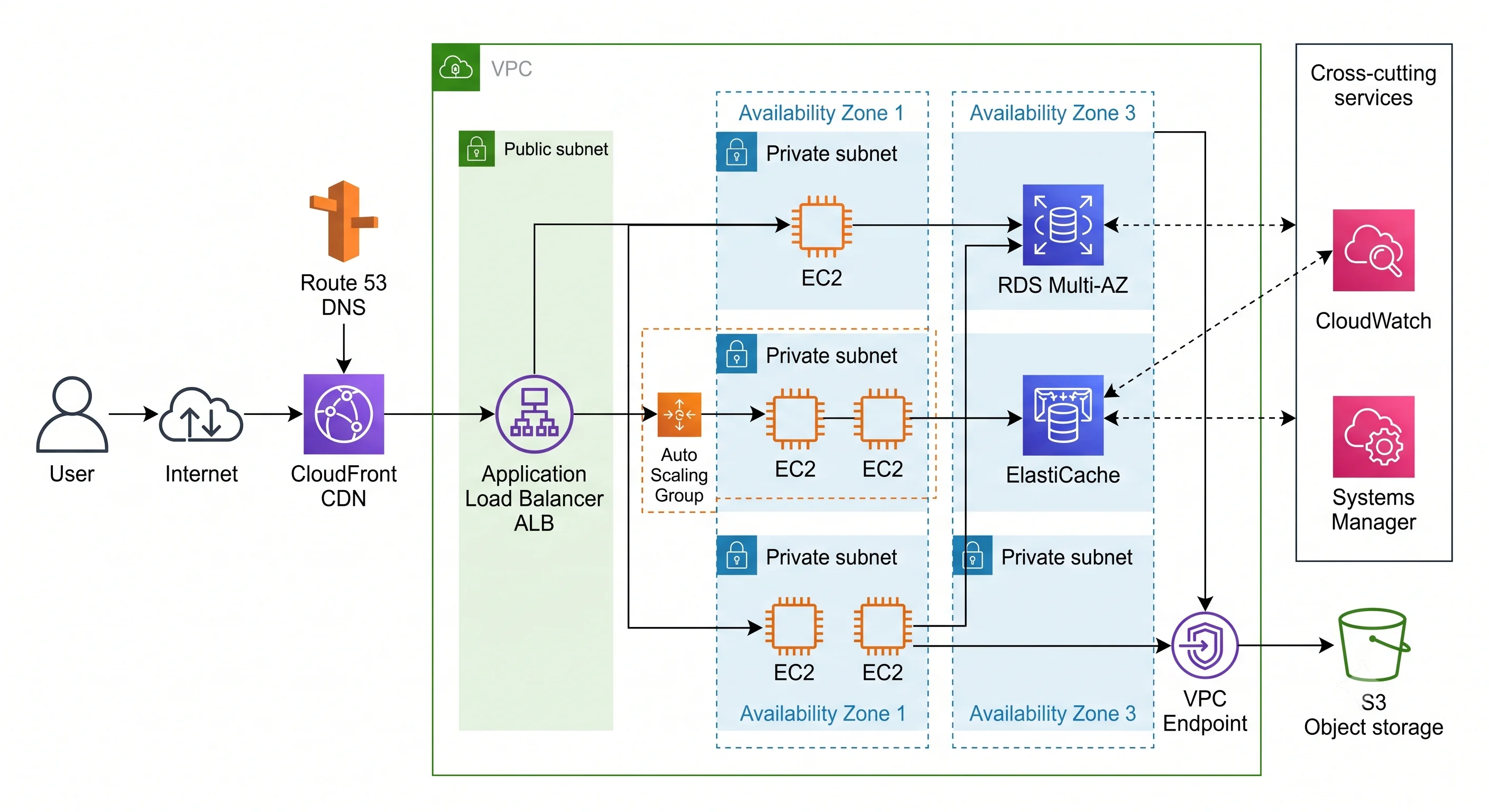

A reference architecture

Pulling the common pieces together — the shape most production EC2 services converge on:

Route 53 (alias) ──▶ CloudFront + WAF ──▶ ALB (ACM cert, public subnets)
                                              │
                                    Target group │ /health
                                              ▼
                            Auto Scaling group across 3 AZs
                            (private subnets, launch template,
                             instance profile, IMDSv2, gp3 encrypted)
                                  │        │           │
                    ┌─────────────┘        │           └──────────────┐
                    ▼                      ▼                          ▼
          RDS Multi-AZ (SG-to-SG)   ElastiCache        S3 (gateway endpoint)
                                                        artifacts + backups

  Cross-cutting: CloudWatch (agent: memory, disk, logs) · SSM (Session Manager,
  Patch Manager, Parameter Store) · Secrets Manager · KMS · AWS Backup (tag-based)
  · EventBridge (spot, state change, health) · CloudTrail

---

Integration anti-patterns

Anti-pattern	Why it hurts	Instead
DNS pointing at an instance IP	Breaks on every replacement; no load distribution	Alias record → ALB
SSH from a bastion host as the access model	A host to patch, a port to expose, keys to rotate, no per-session audit	Session Manager
Credentials in user data or the AMI	Readable via IMDS; baked into every snapshot	Instance role + Secrets Manager
Private subnets reaching S3 through a NAT gateway	Paying per-GB for traffic that could be free	S3 gateway endpoint
health_check_type = "EC2" in an ASG	Dead applications on healthy VMs stay in service	"ELB" + a real /health
Cross-AZ chatter on the hot path	Per-GB charges and added latency, invisibly	Keep hot paths intra-AZ where correctness allows
EFS used to share state between app servers	Slow, expensive, and usually papering over statefulness	Make instances stateless; use S3 or a database
Spot instances with no interruption handler	Dropped requests and lost work, by choice	EventBridge rule + lifecycle hook to drain
Instance-level CloudWatch alarms on a fleet	Alarms on things designed to be replaced; noise	Alarm on ASG/target-group aggregates

---

Check yourself

• Your instances are in private subnets and aws ssm start-session hangs. Name two possible fixes and the cost difference between them.
• Why is iam:PassRole a separate permission from ec2:RunInstances, and what attack does splitting them prevent?
• Memory usage isn't in your CloudWatch dashboard. Why not, and what's the fix?
• An ASG launches instances, kills them ~2 minutes later, and repeats forever. Which setting is wrong, and why is this expensive?
• Give the concrete cost argument for adding an S3 gateway endpoint to a fleet that pulls a 200 MB artifact on every scale-out.
• Why should an RDS security group reference the app security group rather than the VPC CIDR?

---

Next: Production — security, the real cost model, quotas, what to alarm on, and multi-AZ posture.
