Class Diagram

6 min read

In a Nutshell

A class diagram shows the entities in your system, their attributes, their methods, and how they relate to each other. It's the backbone of Low Level Design — the diagram where you demonstrate object-oriented thinking, SOLID principles, and design patterns. While an architecture diagram shows services and infrastructure, a class diagram zooms inside one service and shows how the code is structured. If the interviewer asks you to "design the classes for X," this is the diagram they want.

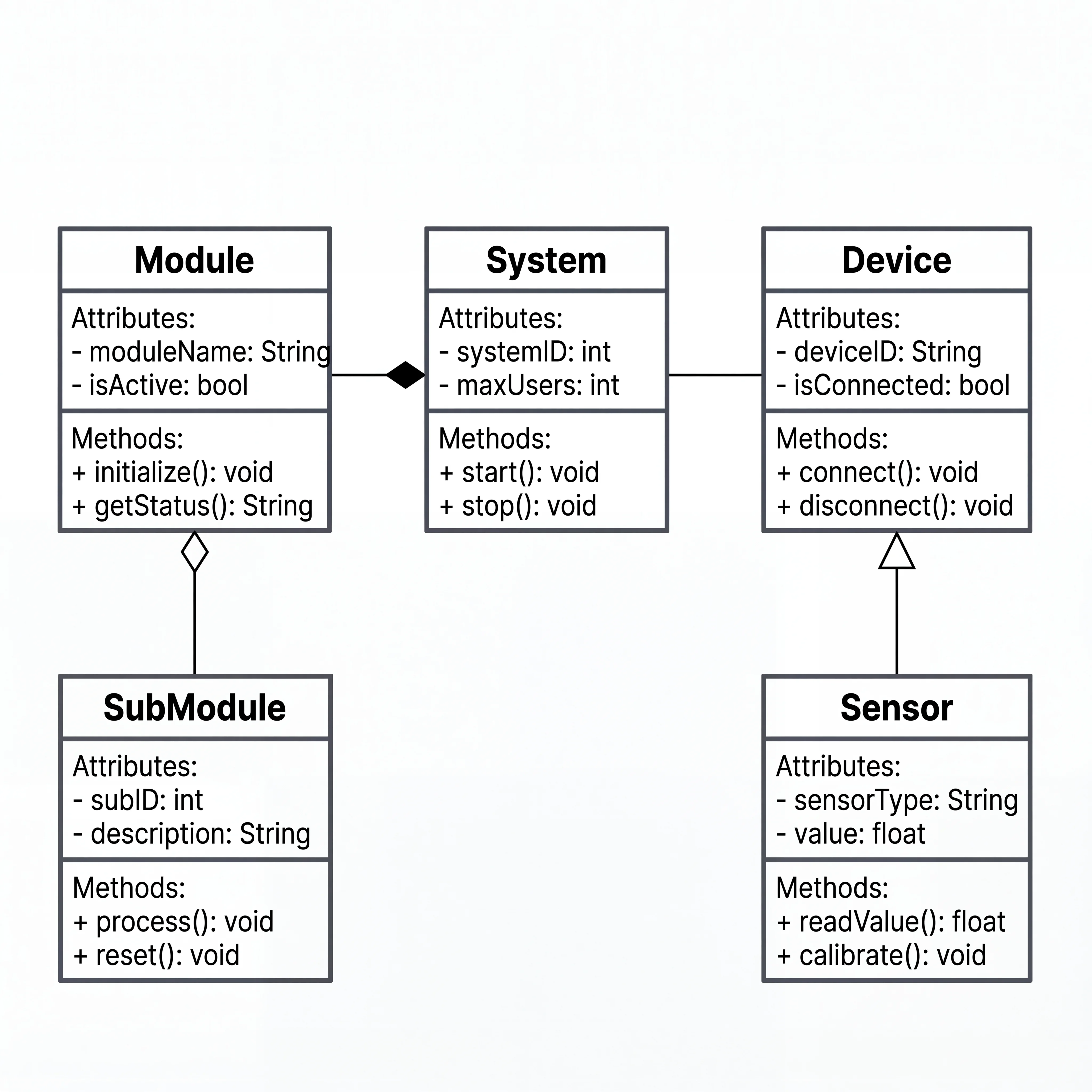

2D minimalistic class diagram showing three rectangular boxes with three sections each (name, attributes, methods), connected by lines with different endpoints: solid diamond for composition, open diamond for aggregation, and triangle for inheritance

How It Actually Works

Anatomy of a Class Box

┌────────────────────────┐
│     <<interface>>       │  ← stereotype (optional)
│      ClassName          │  ← name
├────────────────────────┤
│ - privateAttr: Type     │  ← attributes
│ + publicAttr: Type      │     - = private
│ # protectedAttr: Type   │     + = public
├────────────────────────┤     # = protected
│ + methodName(): RetType │  ← methods
│ - helperMethod(): void  │
└────────────────────────┘

Relationship Types

Relationship	Symbol	Meaning	Example
Association	Solid line	"uses" or "knows about"	`Order ── Customer`
Aggregation	Open diamond ◇─	"has a" (weak ownership — child can exist alone)	`Team ◇── Player`
Composition	Filled diamond ◆─	"owns" (strong ownership — child can't exist without parent)	`Order ◆── OrderItem`
Inheritance	Triangle △─	"is a" (child extends parent)	`Dog △── Animal`
Implementation	Dashed triangle △- -	"implements" (class realizes interface)	`EmailSender △- - NotificationSender`
Dependency	Dashed arrow ⟶	"uses temporarily" (method parameter, local variable)	`OrderService ⟶ PaymentGateway`

Multiplicity

Written at each end of a relationship line:

Notation	Meaning
`1`	Exactly one
`0..1`	Zero or one (optional)
`` or `0..`	Zero or more
`1..*`	One or more
`3..5`	Three to five

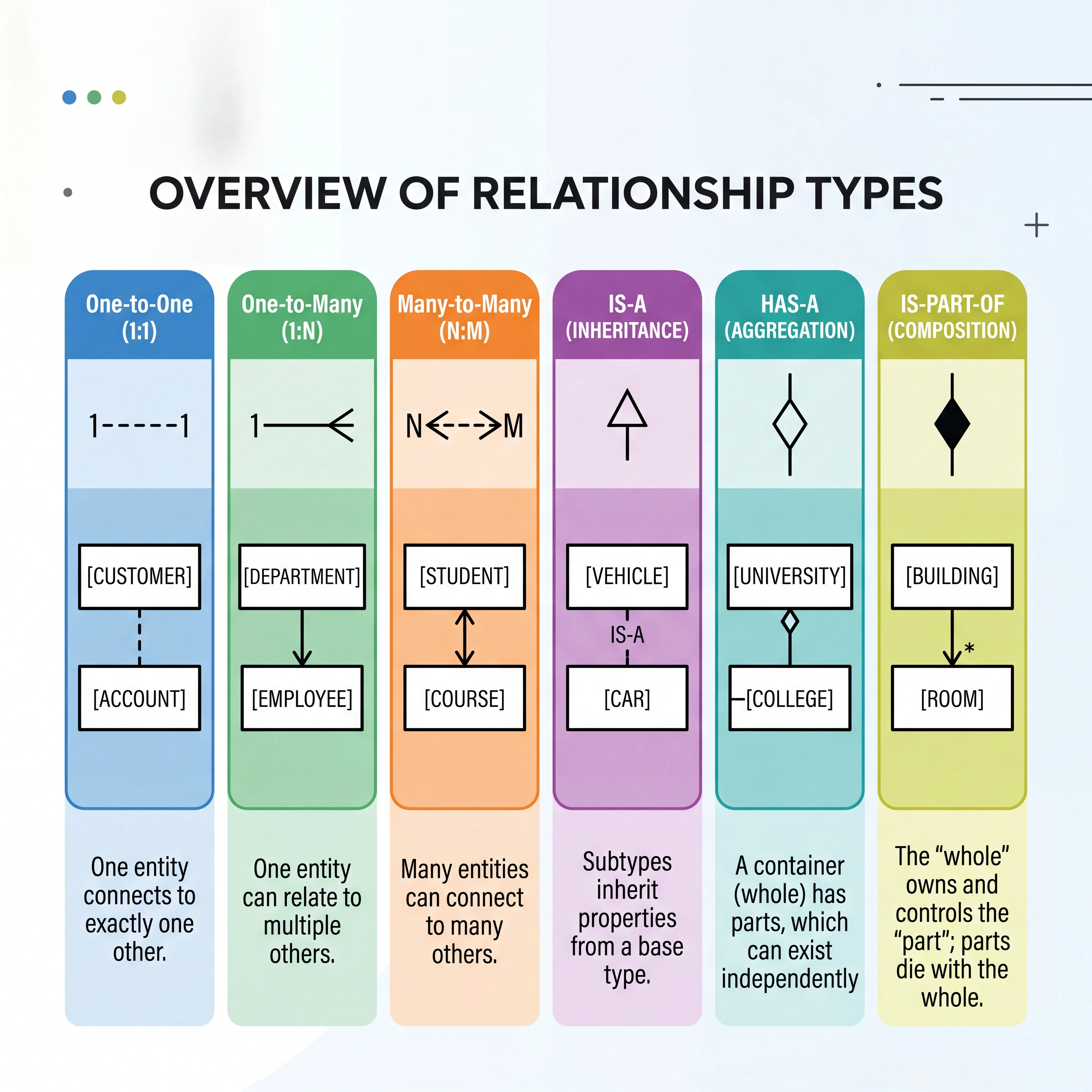

2D minimalistic diagram showing the six relationship types side by side, each with its symbol, a simple two-box example, and a one-line description

When to Use Class Diagrams

LLD interviews — When asked to design the internal structure of a service
Design pattern application — Showing how Strategy, Observer, Factory, or Decorator patterns are used
API/SDK design — Defining the public interface of a library
Domain modeling — Before writing code, to align on entities and their relationships

When NOT to Use Class Diagrams

In HLD — use architecture diagrams instead
For data persistence — use ER diagrams (they map to tables; class diagrams map to code)
For behavior/flow — use sequence or state diagrams

Seeing It in Action

Scenario: Class diagram for a library management system

┌───────────────────────┐       ┌────────────────────────┐
│       Library          │       │    <<interface>>        │
├───────────────────────┤       │    SearchStrategy       │
│ - name: String         │       ├────────────────────────┤
│ - books: List<Book>    │       │ + search(query): Book[]│
├───────────────────────┤       └────────△───────────────┘
│ + addBook(book): void  │               │ implements
│ + searchBooks(): Book[]│       ┌───────┴──────┐
│ + registerMember(): ID │       │              │
└───────────┬───────────┘  ┌────┴─────┐  ┌────┴──────┐
            │ 1         *  │TitleSearch│  │ISBNSearch  │
            ◆              ├──────────┤  ├───────────┤
┌───────────┴───────────┐  │+search() │  │+search()  │
│        Book            │  └──────────┘  └───────────┘
├───────────────────────┤
│ - isbn: String         │
│ - title: String        │          ┌────────────────────┐
│ - author: Author       │          │      Member         │
│ - status: BookStatus   │          ├────────────────────┤
├───────────────────────┤          │ - memberId: String  │
│ + borrow(): boolean    │          │ - name: String      │
│ + return(): void       │          │ - borrowedBooks: [] │
│ + isAvailable(): bool  │          ├────────────────────┤
└───────────────────────┘          │ + borrowBook(): bool│
            △                       │ + returnBook(): void│
            │ extends                └────────────────────┘
  ┌─────────┴─────────┐                      │
  │                    │               borrows │ 0..*
┌─┴──────────┐  ┌─────┴──────┐               │
│ PhysicalBook│  │  EBook      │               ▼
├────────────┤  ├────────────┤         ┌──────────────┐
│ - shelf: Str│  │ - fileUrl   │         │  BorrowRecord │
│ - condition │  │ - format    │         ├──────────────┤
├────────────┤  ├────────────┤         │ - borrowDate  │
│ +getShelf() │  │+download() │         │ - dueDate     │
└────────────┘  └────────────┘         │ - returnDate? │
                                        └──────────────┘

Design decisions visible:

Composition (◆): Library owns Books — a book doesn't exist outside a library context
Inheritance (△): PhysicalBook and EBook extend Book — shared attributes, different behavior
Strategy pattern: SearchStrategy interface with pluggable implementations (TitleSearch, ISBNSearch)
Multiplicity: One Library has many (*) Books. One Member has zero or more BorrowRecords.

Interview Questions

Q: What's the difference between aggregation and composition? Give an example of each. Hint: Composition: Order ◆── OrderItem — if the order is deleted, its items are deleted too (strong ownership). Aggregation: Department ◇── Employee — if the department is dissolved, employees still exist (weak ownership). The distinction matters for cascade deletes and lifecycle management.
Q: Design a class diagram for a parking lot system. Hint: Classes: ParkingLot (composition with ParkingFloor), ParkingFloor (composition with ParkingSpot), ParkingSpot (has SpotType enum: COMPACT, REGULAR, LARGE), Vehicle (inheritance: Car, Truck, Motorcycle), Ticket, Payment. Use Strategy for pricing (hourly, daily, flat rate).
Q: How do class diagrams relate to database ER diagrams? Hint: Classes map roughly to tables, attributes to columns, and relationships to foreign keys. But class diagrams include behavior (methods), inheritance (which doesn't map cleanly to relational tables), and in-memory relationships. ER diagrams are purely about persistent data structure.
Q: When would you use an interface vs an abstract class in your class diagram? Hint: Interface: when you want to define a contract that multiple unrelated classes can implement (a Searchable interface for books, members, and transactions). Abstract class: when you want to share code between related classes (Vehicle with shared licensePlate attribute and park() method, extended by Car and Truck).
Q: Your class diagram has a class with 15 methods and 10 attributes. What's wrong, and how do you refactor? Hint: It violates Single Responsibility Principle — it's doing too many things. Break it into smaller classes by responsibility. Use composition: extract groups of related attributes and methods into separate classes (e.g., extract address fields into an Address class, payment logic into a PaymentProcessor class).
