In-Memory Databases

In a Nutshell

An in-memory database keeps the entire working dataset in RAM, delivering microsecond-level latency — 100–1000× faster than disk-based databases. The trade-off is obvious: RAM is expensive and volatile. In-memory databases are used as caching layers, session stores, real-time leaderboards, and anywhere the speed difference between RAM and SSD (0.1μs vs 100μs) translates directly to user experience or system throughput. Redis and Memcached are the two dominant choices — Redis for its rich data structures, Memcached for pure simplicity.

How It Actually Works

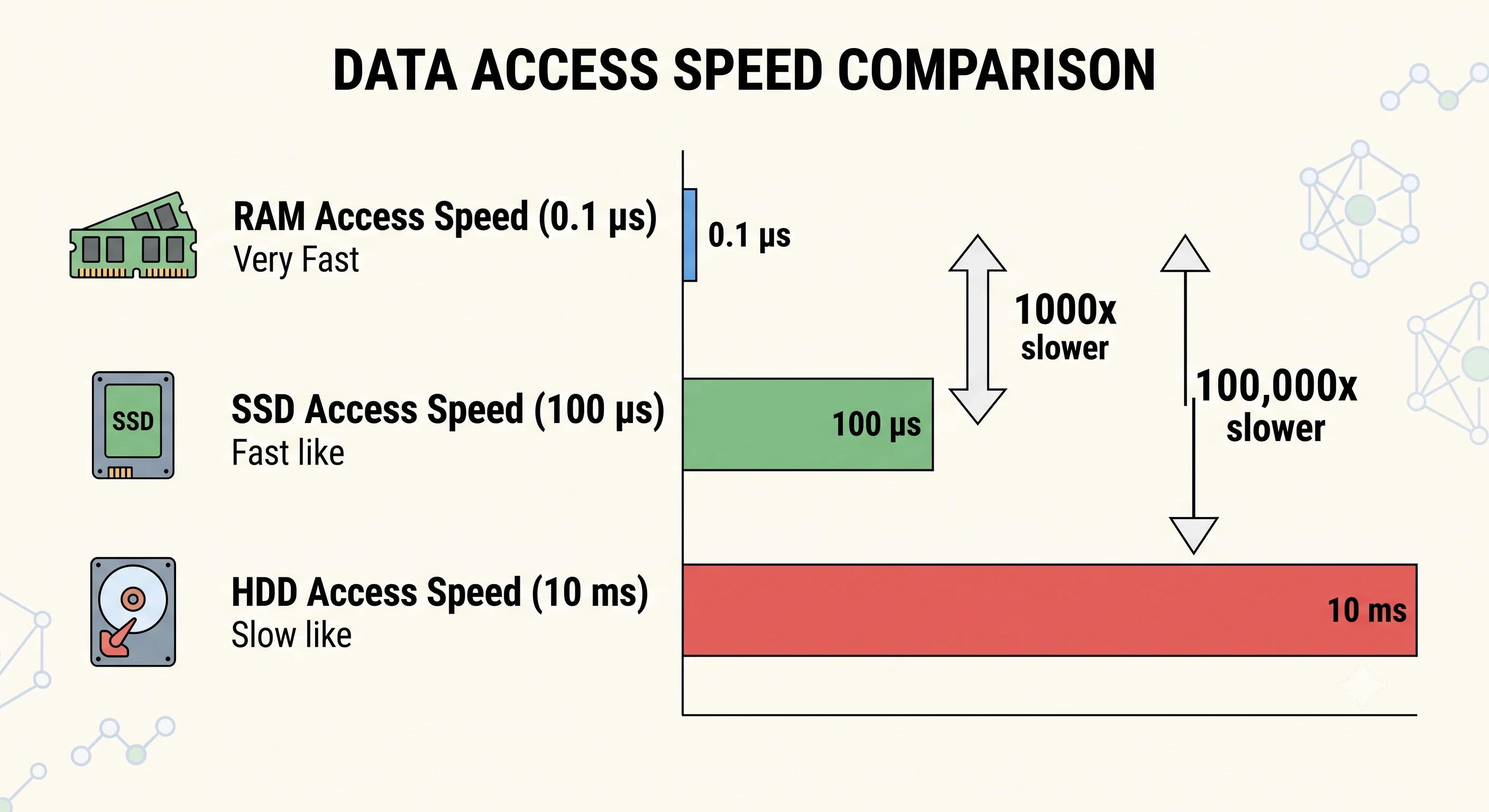

Why In-Memory Is Faster

Operation	Disk (SSD)	RAM	Speedup
Random read	~100 μs	~0.1 μs	1,000×
Sequential read (1 MB)	~1 ms	~0.25 ms	4×
Round-trip to remote cache	~0.5 ms	N/A (local)	—

The latency difference is not incremental — it's orders of magnitude. For operations on hot data (frequently accessed), this transforms system performance.

Redis vs Memcached

Feature	Redis	Memcached
Data types	Strings, hashes, lists, sets, sorted sets, streams, geospatial, bitmaps	Strings only
Persistence	Optional (RDB snapshots + AOF log)	None
Replication	Primary-replica with automatic failover	No built-in replication
Clustering	Redis Cluster (hash slot sharding)	Client-side consistent hashing
Pub/Sub	Built-in	Not supported
Scripting	Lua scripting for atomic multi-step operations	Not supported
Memory efficiency	Less efficient per key (overhead for data structures)	More efficient for simple string caching
Threading	Single-threaded event loop (v7 adds I/O threads)	Multi-threaded
Best for	Feature-rich caching, sessions, real-time features, rate limiting	Simple key-value caching at scale

General guidance: Redis is the default choice unless you need pure string caching at maximum memory efficiency with the simplest possible operations — then Memcached.

Persistence in Redis

Mode	How It Works	Data Loss Window
None	Pure cache — all data lost on restart	Everything
RDB	Periodic snapshots (e.g., every 5 minutes)	Up to snapshot interval
AOF	Append-only log of every write	~1 second (with appendfsync everysec)
RDB + AOF	Both — AOF for crash recovery, RDB for backups	Minimal

Common Patterns

Pattern	How	Use Case

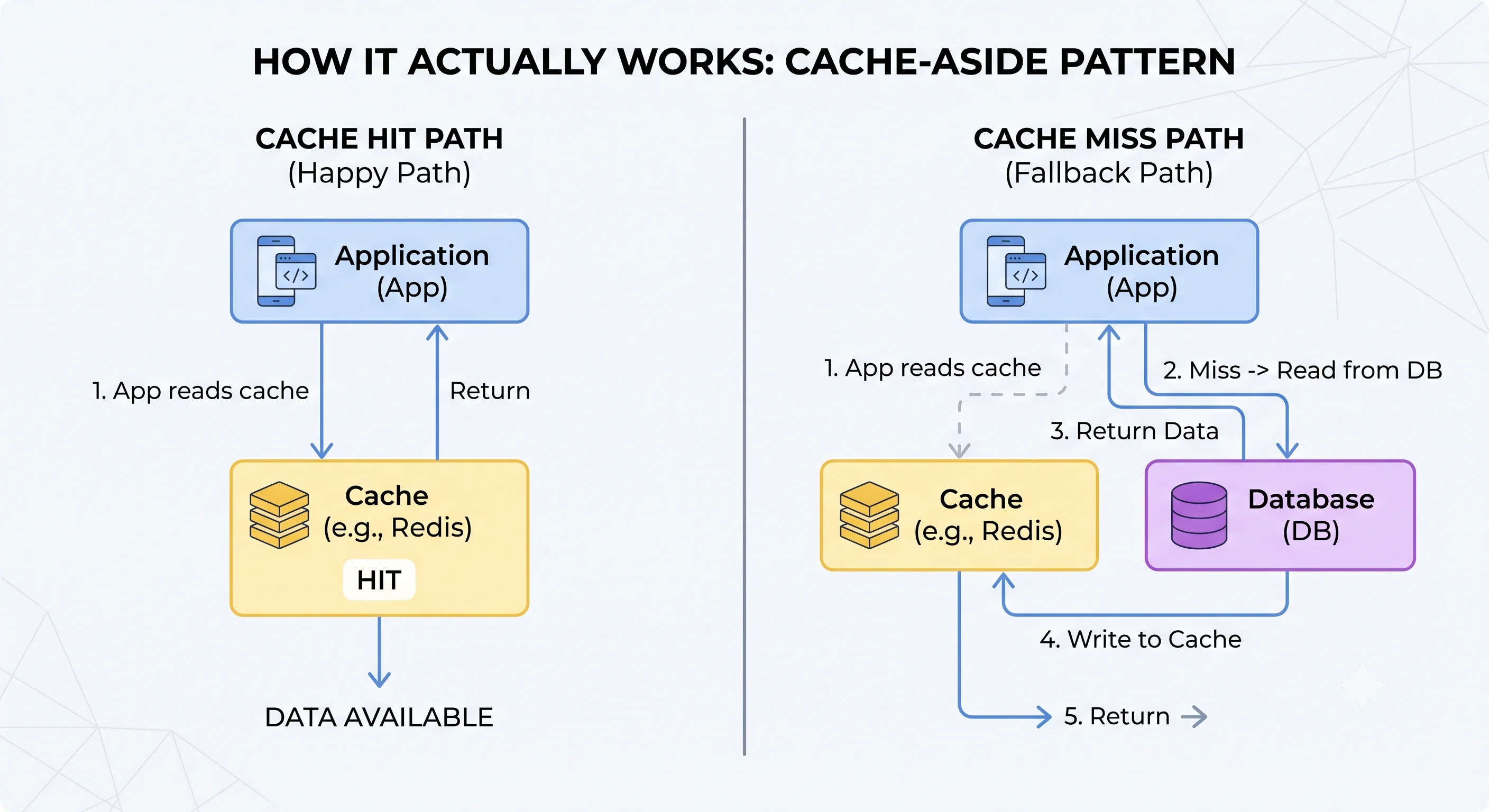

Cache-Aside	App checks cache → miss → read DB → populate cache	General read caching
Write-Through	App writes to cache and DB simultaneously	Ensuring cache freshness
Write-Behind	App writes to cache; async worker writes to DB	High write throughput
Session Store	SET session:{id} {data} EX 3600	Web session management
Distributed Lock	SET lock:{resource} {owner} NX EX 30	Preventing concurrent access
Rate Limiter	INCR rate:{key}:{window} + TTL	API throttling
Pub/Sub	PUBLISH channel msg / SUBSCRIBE channel	Real-time notifications

Seeing It in Action

Scenario: Real-time leaderboard for a gaming platform

import redis

r = redis.Redis()

# Add/update a player's score (atomic)
r.zadd("leaderboard:daily", {"player_alice": 2500})
r.zadd("leaderboard:daily", {"player_bob": 3100})
r.zadd("leaderboard:daily", {"player_charlie": 1800})

# Get top 10 players with scores
top_10 = r.zrevrange("leaderboard:daily", 0, 9, withscores=True)
# [("player_bob", 3100), ("player_alice", 2500), ("player_charlie", 1800)]

# Get a specific player's rank (0-indexed)
rank = r.zrevrank("leaderboard:daily", "player_alice")
# 1 (second place)

# Get player's score
score = r.zscore("leaderboard:daily", "player_alice")
# 2500.0

# Increment score atomically (player earned 150 points)
r.zincrby("leaderboard:daily", 150, "player_alice")

Why in-memory is right here:

• Sorted set — O(log n) insert, O(log n) rank lookup, O(k + log n) top-K query
• Sub-millisecond — Leaderboard refreshes instantly after every game action
• Atomic operations — ZINCRBY handles concurrent score updates without locks
• TTL — Set a TTL on the daily leaderboard key to auto-reset at midnight

The SQL alternative would be:

SELECT player_id, score, RANK() OVER (ORDER BY score DESC) as rank
FROM scores WHERE period = 'daily'
ORDER BY score DESC LIMIT 10;

This works at small scale but requires an index scan on every request. At 10K concurrent players updating scores, the database becomes a bottleneck. Redis handles this with zero effort.

Interview Questions

1. Q: When would you use Redis vs Memcached? Hint: Redis: when you need data structures beyond strings (sorted sets, lists, hashes), persistence, replication, pub/sub, or Lua scripting. Memcached: when you need simple string caching with maximum memory efficiency and multi-threaded performance. Most teams choose Redis because the additional features cost nothing if unused.

2. Q: What happens when Redis runs out of memory? Hint: Depends on the eviction policy: noeviction (return errors on writes), allkeys-lru (evict least recently used keys), volatile-lru (evict LRU keys with TTL only), allkeys-random (evict random keys). For caches, allkeys-lru is the standard. For session stores, volatile-lru ensures non-expiring keys aren't evicted.

3. Q: How would you design a distributed session store with Redis? Hint: Store session data as a Redis hash: HSET session:{id} user_id 123 role admin last_active {timestamp}. Set TTL for session expiry: EXPIRE session:{id} 3600. Use Redis Cluster or Sentinel for high availability. On every request, refresh the TTL. If the session key doesn't exist, redirect to login.

4. Q: Explain the cache-aside pattern. What problems can it have? Hint: App checks cache on read (hit → return; miss → read DB → populate cache). Problems: 1) Cache stampede (many concurrent misses for the same key → all hit the DB). 2) Stale data (DB updated but cache still has old value). 3) Cold start (empty cache after restart → all requests hit DB). Solutions: lock on miss, write-through on updates, cache warming on startup.

5. Q: Is Redis single-threaded? How does it handle 100K+ operations per second? Hint: Redis processes commands on a single thread (event loop), avoiding lock contention. Since most operations are O(1) and data is in RAM, each command completes in microseconds. At 1μs per command, a single core can handle ~1M ops/sec theoretically. Redis 7 adds I/O threads for network handling while keeping single-threaded command execution.
