5. Deployment

Getting Started proved the objects exist. This page makes them repeatable, reviewable, and reversible — and confronts the two things that make Entra ID genuinely different from every other topic in this article:

1. The directory is not ARM. Bicep and ARM templates cannot, in general, manage Entra ID objects. That's not an omission below; it's the honest state of the platform, and this page says what you get instead.
2. A tenant is a singleton. You cannot spin up a dev tenant the way you spin up a dev resource group. "Environments" therefore means something different here, and getting it wrong is expensive to undo.

Tool order for this topic

Stating it plainly, because the template asks for all three: for Microsoft Entra ID, the Bicep/ARM path is partial by design, not omitted. Use Bicep for Microsoft.ManagedIdentity and Microsoft.Authorization/roleAssignments, which are real ARM resources; use Terraform's azuread provider or Graph directly for everything in the directory. Anyone claiming a pure-Bicep Entra deployment is either using the preview Graph extension or managing only the ARM-side half.

The Terraform module

A realistic shape: a reusable module that provisions a workload identity — an application, its service principal, a federated credential for CI/CD, a security group, and the Azure role assignments that make it useful.

variables.tf

variable "environment" {
  type        = string
  description = "dev | staging | prod"
  validation {
    condition     = contains(["dev", "staging", "prod"], var.environment)
    error_message = "environment must be dev, staging or prod."
  }
}

variable "name_prefix" {
  type        = string
  description = "Short workload identifier, e.g. orders-api"
}

variable "github_repo" {
  type        = string
  description = "owner/repo that may federate into this application"
}

variable "target_scope_id" {
  type        = string
  description = "ARM resource ID this identity gets a role on"
}

variable "role_definition_name" {
  type    = string
  default = "Reader"
}

variable "owner_object_ids" {
  type        = list(string)
  description = "Directory object IDs that own the app registration. Never leave this empty."
  validation {
    condition     = length(var.owner_object_ids) > 0
    error_message = "An application with no owners can only be managed by a Global Administrator."
  }
}

That last validation is not decoration. An app registration with no owners becomes administratively orphaned — only a privileged directory role can touch it — and it is one of the most common findings in a tenant review.

main.tf

terraform {
  required_version = ">= 1.6"
  required_providers {
    azuread = { source = "hashicorp/azuread", version = "~> 3.0" }
    azurerm = { source = "hashicorp/azurerm", version = "~> 4.0" }
  }
}

provider "azuread" {}

provider "azurerm" {
  features {
    key_vault {
      # if this module ever touches a vault, decide purge behaviour explicitly
      purge_soft_delete_on_destroy    = false
      recover_soft_deleted_key_vaults = true
    }
  }
}

data "azuread_client_config" "current" {}

locals {
  app_name = "${var.name_prefix}-${var.environment}"
  tags     = ["managed-by:terraform", "env:${var.environment}"]
}

# ---------------------------------------------------------------- application

resource "azuread_application" "this" {
  display_name     = local.app_name
  owners           = var.owner_object_ids
  sign_in_audience = "AzureADMyOrg" # single tenant. Widening this later is a security decision.
  tags             = local.tags

  # An app role this application publishes, for callers to be granted.
  app_role {
    id                   = "1b1f4b0e-4c4e-4d9c-9f7e-8a2f0c1d3e5a" # stable GUID; never regenerate
    allowed_member_types = ["Application"]
    display_name         = "Orders.Read"
    description          = "Read access to the orders API"
    value                = "Orders.Read"
    enabled              = true
  }

  required_resource_access {
    resource_app_id = "00000003-0000-0000-c000-000000000000" # Microsoft Graph

    resource_access {
      id   = "e1fe6dd8-ba31-4d61-89e7-88639da4683d" # User.Read (delegated)
      type = "Scope"
    }
  }

  lifecycle {
    prevent_destroy = true # see "Rollback and blast radius"
  }
}

resource "azuread_service_principal" "this" {
  client_id                    = azuread_application.this.client_id
  owners                       = var.owner_object_ids
  app_role_assignment_required = true # deny-by-default: users must be assigned
  tags                         = local.tags
}

# ------------------------------------------------- credential: NO SECRET HERE

resource "azuread_application_federated_identity_credential" "github" {
  application_id = azuread_application.this.id
  display_name   = "github-${var.environment}"
  audiences      = ["api://AzureADTokenExchange"]
  issuer         = "https://token.actions.githubusercontent.com"
  subject        = "repo:${var.github_repo}:environment:${var.environment}"
}

# ------------------------------------------------------------------- grouping

resource "azuread_group" "consumers" {
  display_name     = "app-${local.app_name}-consumers"
  owners           = var.owner_object_ids
  security_enabled = true
}

# ------------------------------------------------------ Azure-side authorisation

resource "azurerm_role_assignment" "this" {
  scope                = var.target_scope_id
  role_definition_name = var.role_definition_name
  principal_id         = azuread_service_principal.this.object_id
  principal_type       = "ServicePrincipal" # skips the directory lookup; avoids the replication race
}

Four details that are not obvious and cost real time:

• app_role.id is a GUID you choose and must never change. Regenerating it destroys and recreates the role, which silently revokes every assignment of it. Hard-code it; treat it like a primary key.
• The Graph permission IDs are GUIDs, not names. User.Read is e1fe6dd8-ba31-4d61-89e7-88639da4683d in every tenant. Look them up with az ad sp show --id 00000003-0000-0000-c000-000000000000 --query "oauth2PermissionScopes[].{v:value,id:id}".
• required_resource_access requests permission; it does not grant it. Consent is a separate step (azuread_service_principal_delegated_permission_grant, or az ad app permission admin-consent), and admin consent needs a privileged directory role that your pipeline probably should not hold. Splitting "declare the permission" from "consent to it" across two approvals is a feature, not friction.
• principal_type = "ServicePrincipal" tells ARM not to look the principal up in the directory, which is what makes freshly-created identities assignable without the replication race from Architecture.

outputs.tf

output "client_id" {
  value       = azuread_application.this.client_id
  description = "Use for AZURE_CLIENT_ID in the pipeline"
}

output "object_id" {
  value       = azuread_service_principal.this.object_id
  description = "Use for role assignments"
}

output "tenant_id" {
  value = data.azuread_client_config.current.tenant_id
}

No secret output. That's the point — there is no secret.

The loop

terraform init -backend-config=backends/prod.hcl
terraform plan  -var-file=envs/prod.tfvars -out=tfplan
terraform apply tfplan

Provider authentication — the bootstrap problem

The azuread provider needs a token with Microsoft Graph permissions, and the azurerm provider needs one for ARM. In CI these come from the same federated credential, but note the asymmetry: the pipeline identity needs directory permissions (typically the Application Administrator directory role, or narrower Graph application permissions such as Application.ReadWrite.OwnedBy) and Azure permissions (User Access Administrator at the target scope to create role assignments). Neither implies the other.

Application.ReadWrite.OwnedBy over Application.ReadWrite.All is the meaningful hardening: it lets the pipeline manage only applications it owns, so a compromised pipeline cannot rewrite the credentials of every application in the tenant. It requires the pipeline identity to be an owner of what it creates — which is why owners is a required variable above.

And the genuine chicken-and-egg: something must create the very first app registration and federated credential, and it can't be the pipeline that doesn't exist yet. Do it once, by hand, as a named human, and record it. A bootstrap step that pretends to be automated is worse than an honest manual one.

Remote state and locking

terraform {
  backend "azurerm" {
    resource_group_name  = "rg-tfstate"
    storage_account_name = "sttfstateprod"
    container_name       = "tfstate"
    key                  = "entra-orders-api.tfstate"
    use_azuread_auth     = true # authenticate with your identity, not a storage key
  }
}

The azurerm backend uses native blob leases for locking. There is no DynamoDB-equivalent lock table to create — a genuine simplification over the AWS setup, and worth knowing so you don't go looking for one.

use_azuread_auth = true deserves emphasis on this topic in particular: the alternative is a storage account key, and a pipeline that holds a storage key which unlocks state that contains directory credentials has concentrated the entire blast radius into one string.

Why local state is a footgun here specifically. Terraform state for Entra objects contains client secrets and, for some resources, certificate material in plaintext. A local terraform.tfstate in a repo is a credential leak, not a hygiene problem. Encrypt the storage account, restrict it with Storage Blob Data Contributor to the pipeline identity and a small human group only, enable versioning and soft delete, and never terraform show on a shared screen.

Workspaces vs. directory-per-environment. Use directory-per-environment with separate state files and separate backends. Workspaces share a backend and a provider configuration, which for a resource type whose environments may live in different tenants is exactly the wrong sharing.

Environments — the part that's different here

There is no "dev tenant" the way there is a dev resource group. Three honest options:

The decision hinges on one question: are you changing tenant-wide settings? Conditional Access, authentication methods, consent policy, and cross-tenant access settings have no scope smaller than the tenant. Testing them in production is testing in production, in the literal sense — a bad policy locks out everyone at once. If you manage those as code, you need a second tenant. If you only manage applications and groups, one tenant with naming discipline is fine.

Where Azure Policy fits — and doesn't. Azure Policy governs ARM resources, so it can deny a role assignment or require a managed identity on a resource. It cannot govern the directory. The Entra-side equivalents are separate mechanisms: application consent policies, cross-tenant access settings, authentication method policies, Conditional Access, and access reviews. Reaching for Azure Policy to control directory objects is a category error worth naming out loud, because the two words "policy" invite it.

Environment differences belong in .tfvars:

# envs/prod.tfvars
environment          = "prod"
name_prefix          = "orders-api"
github_repo          = "contoso/orders-api"
role_definition_name = "Key Vault Secrets User"
owner_object_ids     = ["<platform-team-group-object-id>"]

Note the owner is a group, not a person. People leave.

Conditional Access as code

Worth its own section because it is the highest-risk thing you can put in a pipeline, and also the thing most worth version-controlling.

resource "azuread_conditional_access_policy" "require_mfa_for_admins" {
  display_name = "CA001 - Require phishing-resistant MFA for admin portals"
  state         = "enabledForReportingButNotEnforced" # start here. Always.

  conditions {
    client_app_types = ["all"]

    applications {
      included_applications = ["MicrosoftAdminPortals"]
    }

    users {
      included_roles = [
        "62e90394-69f5-4237-9190-012177145e10", # Global Administrator
      ]
      excluded_groups = [var.break_glass_group_object_id] # non-negotiable
    }
  }

  grant_controls {
    operator                          = "OR"
    authentication_strength_policy_id = var.phishing_resistant_strength_id
  }
}

Three rules for this resource, learned the hard way by many people:

1. state starts at enabledForReportingButNotEnforced. Promote to enabled in a separate, deliberate commit after reading the sign-in logs. A Conditional Access change is not a deployment; it is a change window.
2. The break-glass exclusion is part of the resource, not a manual afterthought. If it's not in the code, the next apply removes it.
3. A policy targeting all users and all apps can lock out the pipeline itself, including the workload identity that would roll it back. Exclude the automation identity explicitly, or accept that recovery is a manual break-glass sign-in.

Ansible — day-2 operations

Ansible's Entra coverage is thinner than Terraform's and it does not reconcile drift, so use it for what it's genuinely good at: imperative, ordered, repeatable operations over lists of things.

# onboard-team.yml — idempotent group and user membership reconciliation
- name: Reconcile application access group membership
  hosts: localhost
  connection: local
  gather_facts: false

  vars:
    group_name: "app-orders-api-prod-consumers"
    members:
      - alice@contoso.com
      - bob@contoso.com

  tasks:
    - name: Ensure the security group exists
      azure.azcollection.azure_rm_adgroup:
        display_name: "{{ group_name }}"
        mail_enabled: false
        security_enabled: true
        mail_nickname: "{{ group_name }}"
        state: present
      register: grp

    - name: Ensure members are present
      azure.azcollection.azure_rm_adgroup:
        object_id: "{{ grp.object_id }}"
        present_members:
          - "user@{{ item }}"
        state: present
      loop: "{{ members }}"

    - name: Show what changed
      ansible.builtin.debug:
        msg: "group changed: {{ grp.changed }}"

Authentication uses the same principle as everywhere else — a service principal via environment variables (AZURE_CLIENT_ID, AZURE_TENANT_ID, and ideally a federated token rather than AZURE_SECRET), or a managed identity when the playbook runs on an Azure VM or container.

Idempotency, demonstrated: run it twice.

ansible-playbook onboard-team.yml
# PLAY RECAP ... changed=2

ansible-playbook onboard-team.yml
# PLAY RECAP ... changed=0

The second run reporting changed=0 is the whole contract. If it doesn't, the module is comparing something it shouldn't — usually a case-sensitivity or ordering difference — and you should not put it in a schedule until you know why.

What Ansible is genuinely better at here: bulk user operations driven by a CSV or an HR feed, group membership reconciliation from an external source of truth, and one-off remediations like "revoke sessions for these forty accounts". Those are loops over data, not declarations of state, and forcing them into Terraform produces a state file that is really a database.

⚠️ Verify current azure.azcollection module coverage for Entra objects before designing around it; several directory operations still have no module and require ansible.builtin.uri against Microsoft Graph directly.

Bicep / ARM — what you actually get

targetScope = 'resourceGroup'

param location string = resourceGroup().location
param environment string
param namePrefix string

resource identity 'Microsoft.ManagedIdentity/userAssignedIdentities@2023-01-31' = {
  name: 'id-${namePrefix}-${environment}'
  location: location
}

@description('Key Vault Secrets User')
var roleId = '4633458b-17de-408a-b874-0445c86b69e6'

resource vault 'Microsoft.KeyVault/vaults@2023-07-01' existing = {
  name: 'kv-${namePrefix}-${environment}'
}

resource assignment 'Microsoft.Authorization/roleAssignments@2022-04-01' = {
  scope: vault
  // deterministic GUID: re-deploying must not create a duplicate assignment
  name: guid(vault.id, identity.id, roleId)
  properties: {
    roleDefinitionId: subscriptionResourceId(
      'Microsoft.Authorization/roleDefinitions', roleId)
    principalId: identity.properties.principalId
    principalType: 'ServicePrincipal'
  }
}

output principalId string = identity.properties.principalId

az deployment group what-if \
  -g rg-orders-prod \
  -f identity.bicep \
  -p environment=prod namePrefix=orders-api

extension microsoftGraphV1

resource app 'Microsoft.Graph/applications@v1.0' = {
  uniqueName: 'orders-api-prod'
  displayName: 'orders-api-prod'
}

resource sp 'Microsoft.Graph/servicePrincipals@v1.0' = {
  appId: app.appId
}

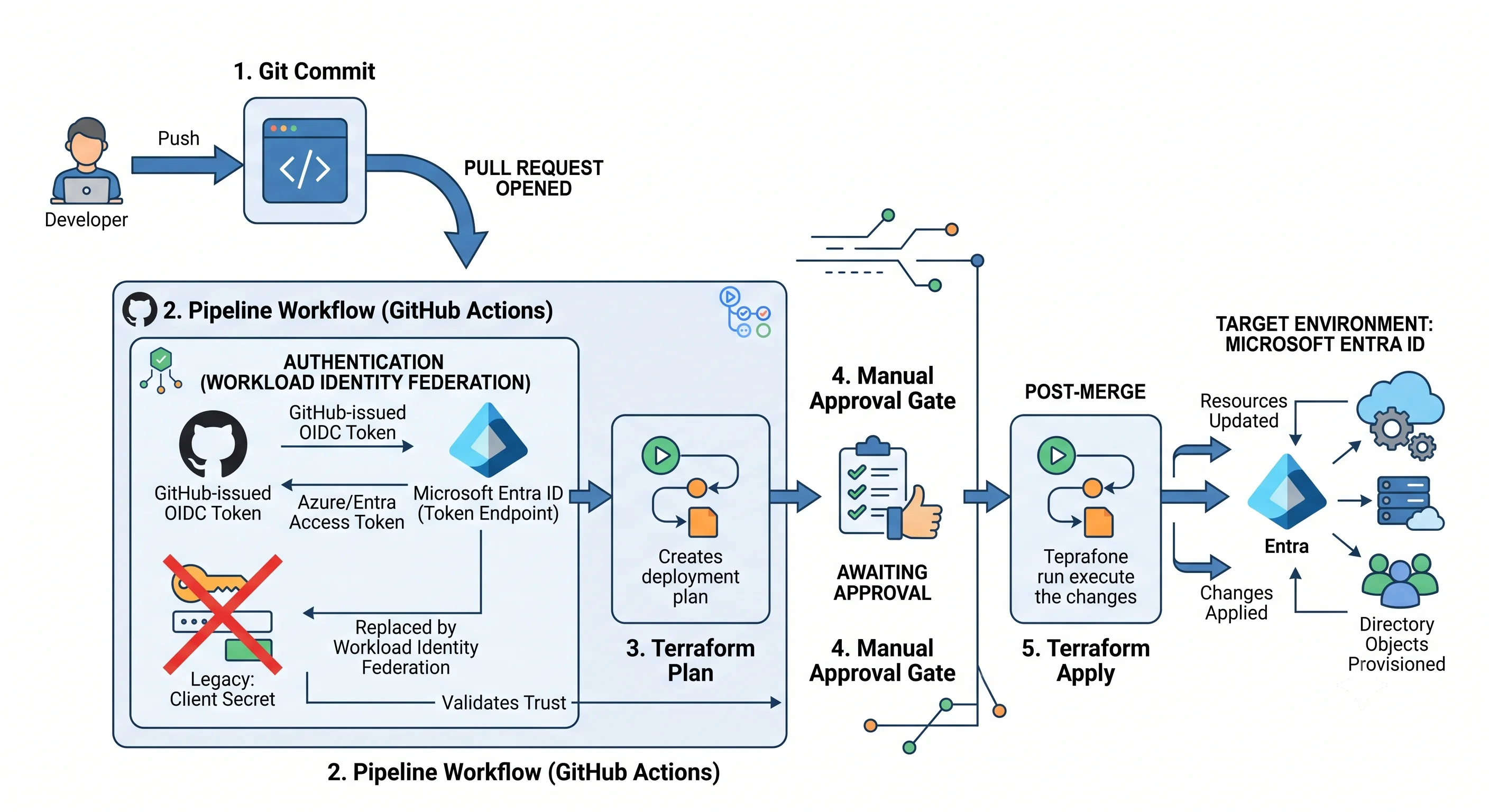

CI/CD — GitHub Actions with workload identity federation

No client secret. No publish profile. The federated credential created in the Terraform module above is what makes this work: GitHub mints an OIDC token, Entra ID validates issuer + subject + audience against the registered credential, and exchanges it for an access token.

name: entra-infra

on:
  pull_request:
    paths: ['infra/entra/**']
  push:
    branches: [main]
    paths: ['infra/entra/**']

permissions:
  id-token: write      # required to request the OIDC token
  contents: read
  pull-requests: write

jobs:
  plan:
    runs-on: ubuntu-latest
    environment: prod-plan
    env:
      ARM_USE_OIDC: true
      ARM_CLIENT_ID: ${{ vars.AZURE_CLIENT_ID }}
      ARM_TENANT_ID: ${{ vars.AZURE_TENANT_ID }}
      ARM_SUBSCRIPTION_ID: ${{ vars.AZURE_SUBSCRIPTION_ID }}
    steps:
      - uses: actions/checkout@v4
      - uses: hashicorp/setup-terraform@v3
      - run: terraform init -backend-config=backends/prod.hcl
        working-directory: infra/entra
      - run: terraform plan -var-file=envs/prod.tfvars -out=tfplan
        working-directory: infra/entra

  apply:
    needs: plan
    if: github.ref == 'refs/heads/main'
    runs-on: ubuntu-latest
    environment: prod          # <- manual approval gate lives on this environment
    env:
      ARM_USE_OIDC: true
      ARM_CLIENT_ID: ${{ vars.AZURE_CLIENT_ID }}
      ARM_TENANT_ID: ${{ vars.AZURE_TENANT_ID }}
      ARM_SUBSCRIPTION_ID: ${{ vars.AZURE_SUBSCRIPTION_ID }}
    steps:
      - uses: actions/checkout@v4
      - uses: hashicorp/setup-terraform@v3
      - run: terraform init -backend-config=backends/prod.hcl
        working-directory: infra/entra
      - run: terraform apply -auto-approve -var-file=envs/prod.tfvars
        working-directory: infra/entra

Two things this deliberately gets right:

The subject claim is the security control. The federated credential above matched repo:contoso/orders-api:environment:prod. That means only a job running against the GitHub prod environment can obtain the token — and GitHub environments are what carry the approval gate. A credential matched on repo:owner/repo:ref:refs/heads/main is weaker, and one matched on repo:owner/repo:pull_request lets any fork's PR authenticate. Get the subject wrong and you have built a public-write pipeline.

The azuread provider needs Graph permission separately. ARM_* variables authenticate both providers, but the permissions are granted in two places: a directory role or Graph app permission for the directory objects, and Azure RBAC at the target scope for role assignments. A pipeline that plans cleanly and fails at apply with Authorization_RequestDenied is missing the directory half.

For Azure DevOps, the equivalent is an Azure Resource Manager service connection using workload identity federation plus an environment with approvals and checks.

Rollback and blast radius

"Undo" for a directory object is not the same as for a VM, and the differences are where the damage happens.

What rollback actually means

The operations that force replacement

These are the ones that silently destroy and recreate, changing the object ID:

• Changing azuread_application.display_name does not force replacement — but changing the application's sign_in_audience in some directions does ⚠️ verify against the current provider documentation before applying.
• Removing and re-adding any resource in the configuration, including a rename of the Terraform address without a moved block. terraform state mv or a moved {} block is the fix.
• Changing an app_role.id — replaces the role and revokes every assignment of it.
• Deleting a user-assigned managed identity and recreating it — new principal ID, all role assignments orphaned.

Read every # forces replacement line in a plan touching identity as if it said "revokes access for everyone". For most resource types replacement is a brief outage. For an identity it is a permanent loss of every reference to it, held in systems Terraform cannot see.

Soft delete and purge

Entra ID soft-deletes applications, service principals, users, and Microsoft 365 groups ⚠️ verify which object types and the current retention window against current Microsoft docs. Practical consequences:

• Soft-deleted objects still consume directory quota.
• A soft-deleted object retains its identifiers, so recreating something with the same uniqueName can conflict until it's purged.
• Restore is possible: az ad app list --show-deleted / the Deleted applications blade, and Restore-MgDirectoryDeletedItem.
• Security groups (non-M365) are not soft-deleted in the same way — deleting one is closer to permanent. Check before you terraform destroy a group that carries role assignments.

Resource locks — and where they don't help

CanNotDelete and ReadOnly locks are ARM locks. They protect the managed identity and the role assignment. They do not protect an app registration, a group, or a Conditional Access policy, because those aren't ARM resources. The directory-side equivalents are weaker and worth naming honestly:

• lifecycle { prevent_destroy = true } in Terraform — protects against your own pipeline only.
• Restricted management administrative units — can genuinely protect a set of directory objects from all but a designated set of admins ⚠️ verify licensing and current capability.
• Ownership hygiene and PIM on the roles that could delete the object.

A lock on a resource group tells you nothing about whether the app registration inside your Terraform state is protected. It isn't.

Blast radius, ranked

1. A tenant-wide Conditional Access policy. Everyone, instantly, including you.
2. Changing consent or authentication method policy. Everyone, at their next token request.
3. Deleting or replacing a widely-referenced service principal. Every dependent workload, with errors that point at the resources, not the identity.
4. Rotating a secret without coordinating consumers. Only that application, but completely.
5. Adding a group or an app role. Contained.

Design your approvals to match that ranking. A pipeline that treats a Conditional Access change and a group membership change with the same gate is under-gating one and over-gating the other.

Drift

Directory drift is more likely than resource drift, because the portal is easy, incidents are urgent, and "just add them to the group for now" is a sentence everyone has said.

How to detect it:

• terraform plan on a schedule in CI, failing the build on a non-empty diff. This is the primary control and it costs one cron entry.

• The Entra audit log, which records every directory write with actor, target, and old/new values. Route it to Log Analytics (see Production) and alert on writes to the objects you manage as code:

  AuditLogs
  | where TimeGenerated > ago(1d)
  | where OperationName has_any ("Update application", "Add app role assignment",
                                 "Update conditional access policy", "Add owner to application")
  | extend actor = tostring(InitiatedBy.user.userPrincipalName)
  | where isnotempty(actor)                 // exclude the pipeline's service principal
  | where actor !in (dynamic(["terraform-pipeline@contoso.com"]))
  | project TimeGenerated, OperationName, actor, TargetResources

• Access reviews for group membership drift — the governance-flavoured answer, which asks the owner to re-attest rather than asking an engineer to read a diff.

• az ad app show / Graph compared against the committed configuration, for the fields Terraform doesn't track.

What to do about it. The two legitimate responses are re-apply (the config is right, the portal change was wrong) and import (the portal change was right, the config is stale) — and the choice is a conversation, not a policy. What is not legitimate is leaving it: an emergency group membership added in the portal and never reconciled is exactly the finding an access review is designed to catch six months too late.

The structural fix is to remove the temptation: if people are clicking in the portal because the pipeline takes forty minutes, fix the pipeline. Drift is usually a symptom of friction.

Teardown

terraform destroy -var-file=envs/dev.tfvars

Note that prevent_destroy on the application will block this deliberately; removing it is a conscious act, which is the point.

What terraform destroy will not remove:

• Soft-deleted applications, service principals, and users — they remain for the retention window, still consuming quota and still holding their names. Purge explicitly if you need the name back.
• Consent grants made outside the state file. An admin who clicked "Grant admin consent" in the portal created an oauth2PermissionGrant Terraform never saw.
• Role assignments created outside this configuration — including any the application itself created at runtime, and any scoped above the target resource.
• Sign-in and audit log entries. They persist for the workspace's retention period, which is correct and occasionally reassuring.
• The service principals of multi-tenant applications that were consented to in your tenant. Those were never yours; they were created by consent and are removed by revoking it.
• Anything under an ARM CanNotDelete lock — the destroy fails with an error that reads like a permissions problem and isn't. Check locks first when an apply or destroy fails inexplicably.

Verify the directory is actually clean, not just the subscription:

az ad app list --display-name orders-api-dev -o table
az ad app list --show-deleted --query "[?contains(displayName,'orders-api-dev')].displayName" -o tsv
az role assignment list --all --query "[?principalName==null].{scope:scope, role:roleDefinitionName}" -o table

That last command lists role assignments whose principal no longer resolves — the orphans. Finding some is normal in an established tenant. Leaving them is how a resurrected object silently inherits permissions it was never granted.

Next: Integrations →

← Back to the Microsoft Entra ID overview · ← Previous: Getting Started
